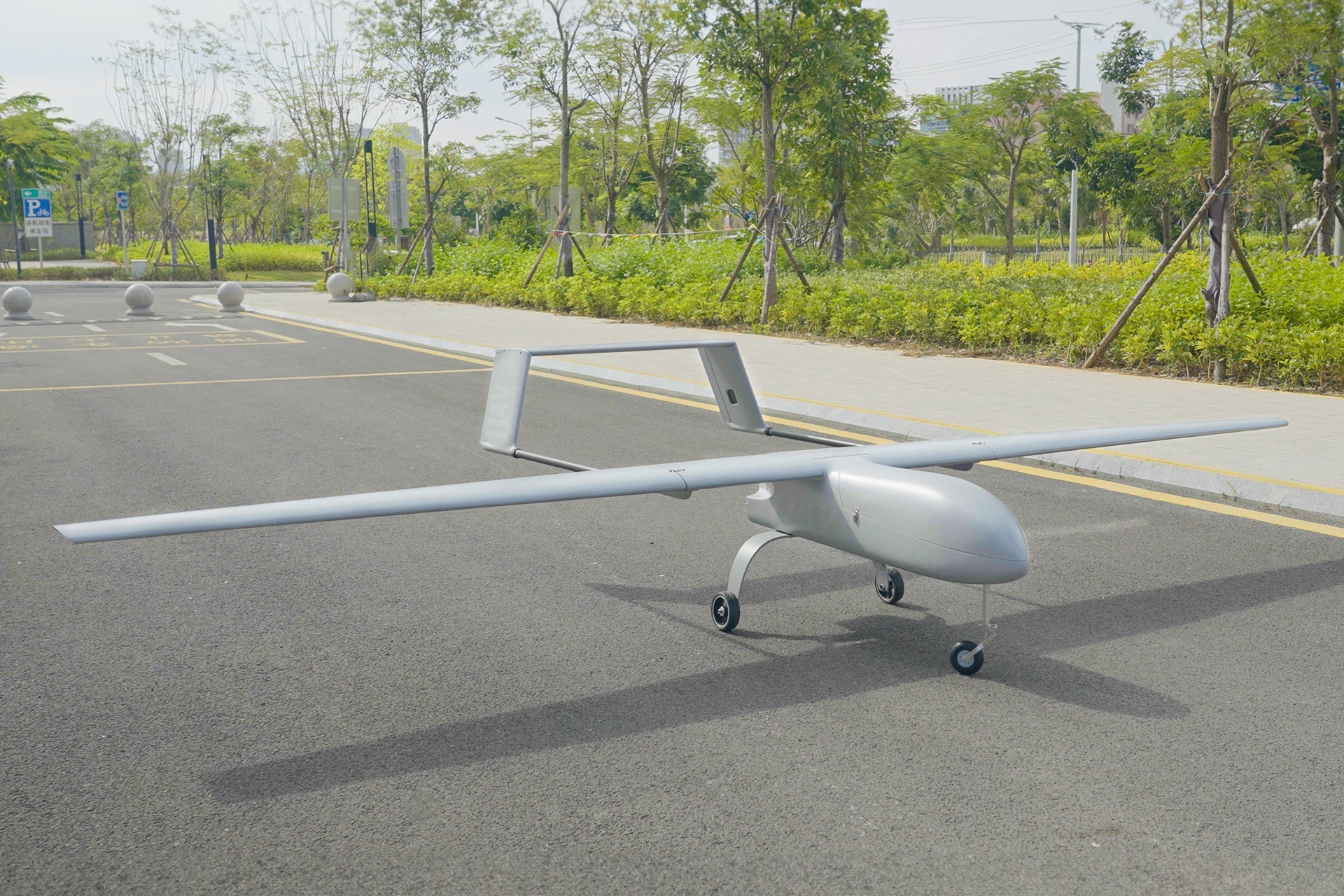

The Skyeye 4500mm Glass Fiber UAV Fixed Wing is a top-of-the-line frame kit designed for various professional aerial uses. It boasts an impressive maximum flight time of 3 hours, a maximum takeoff weight of 28kg, and a payload capacity of 8kg, making it the ultimate choice for your UAV needs.
Now offered with a full carbon fiber option
Engineered for optimal aerodynamic performance, it features an impressive wingspan of 4500mm and a length of 2530mm. The frame kit is highly customizable, allowing for the addition of a 50-80cc engine and the choice between gasoline and electrical power packages, which must be purchased separately.
Efficiently designed for safety, this UAV Fixed Wing by Skyeye can support advanced ignition systems and carburetors, making it a dependable and efficient option for a variety of missions.
| PARAMETER | Wingspan | 4500mm |
| Length | 2530mm | |
| Wing Area | 180.1dm2 | |
| Load weight | 8kg | |
| Empty weight | 13.95 kg | |
| Maximum speed | 120km/hr | |
| Minimum speed | 45km/hr | |
| Front Cabin Size(LxWxH) | 560*260*270(mm) | |
| Maximum Take-Off Weight | 32KG | |
| Flight Time | 3-5h | |
| Fuel Tank | 8L |
| Skyeye SS472 Fixed Wing | ||||
| Name | Specification | KIT | PNP(M) | PNP(E) |
| Flying platform | SS472 Outer wing | 2 | 2 | 2 |
| SS472 Center wing | 1 | 1 | 1 | |
| SS472 Main body | 1 | 1 | 1 | |
| SS472 Stay bar | 2 | 2 | 2 | |
| SS472 Undercarriage | 1 | 1 | 1 | |
| SS472 Skateboard | 1 | 1 | 1 | |
| SS472 Plain tail | 2 | 2 | 2 | |
| SS472 Hatchcover | 1 | 1 | 1 | |
| SS472 Fuel tank | 1 | 1 | 1 | |
| SS472 Engine hood | 1 | 1 | 1 | |
| Power system(Motor) | Dualsky GA6000.8 180RPM/V Brushless Motor | 1 | ||
| Dualsky XC13036HV 130A High Voltage ESC | 1 | |||
| SAVOX SC-1256TG+ | 7 | |||
| Sail 24x12 High Power Propeller | 1 | |||
| MT90 UAV Pitot Tube | 1 | |||
| Nav. LED lights set | 1 | |||
| Heat shrink tube | 1 | |||
| Steering gear tester | 1 | |||
| 3 core wires (male *2, female *2, one point two *1) | 7 | |||
| 10awg single-core cable (Red *1, black *1) | 4 | |||
| Carbon fiber sticker (30*100cm) | 1 | |||
| Steering gear cover plate a pair of points | 4 | |||
| Propeller cover | 1 | |||
| 5+2 D-SUB connector pair | 1 | |||
| Power system(Engine) | DLE60 Engine x 1 | 1 | ||
| SAVOX SC-1256TG+ | 8 | |||
| Sail 23x9 High Power Propeller x 1 | 1 | |||
| MT90 UAV Pitot Tube | 1 | |||
| Nav. LED lights x 1 set | 1 | |||
| Heat shrink tube | 1 | |||
| Steering gear tester | 1 | |||
| 3 core wires (male *2, female *2, one point two *1) | 8 | |||
| 16awg single-core cable (Red *1, black *1) | 2 | |||
| Carbon fiber sticker (30*100cm) | 1 | |||
| Steering gear cover | 4 | |||
| Propeller cover | 1 | |||
| 5+2D-SUB connector | 2 | |||
Information Updated version:202412201622
You can also use aluminum box packaging, please consult our sales for details.
Customized aluminum box, contact customer service before customization, product price is an aluminum box price;
The aluminum box is a custom product, the order will be made after payment, and no refund will be accepted.
Note:
Production lead time: 7-15 working days (ask customer service about production schedule before ordering)
The shipping time is expected to be another 7~14 days
Prices and freight are for reference only, no stock, orders need to wait for production time.
