**Product Description:**

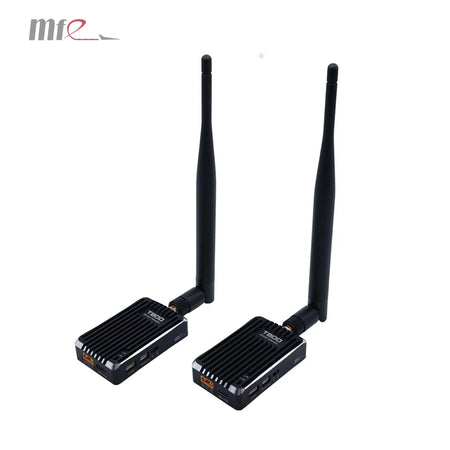

Our video transmitter is a high-performance communication device designed for long-distance, high-quality video transmission. It operates within the 1-6 GHz frequency band to ensure stable performance in various environments; it features the highest resolution of up to 3K, capturing detailed and bright images that meet professional playback requirements. Stability is its core advantage, achieved through low latency and interference-resistant technology, ensuring smooth video playback without any interruptions. With a maximum transmission distance of up to 3 kilometers, it easily connects remote devices or cameras, making setup efficient and cost-effective. Additionally, it supports multiple output ports, providing flexibility for different device configurations.

This product is designed with durable yet lightweight construction, ensuring reliable performance whether you're conducting an indoor meeting or capturing footage in the field. It requires no additional equipment to operate efficiently, saving time and resources. Whether you're a professional photographer, videographer, or anyone requiring clear, stable video, this transmitter enhances your workflow and creative output by delivering consistent quality and reliability.

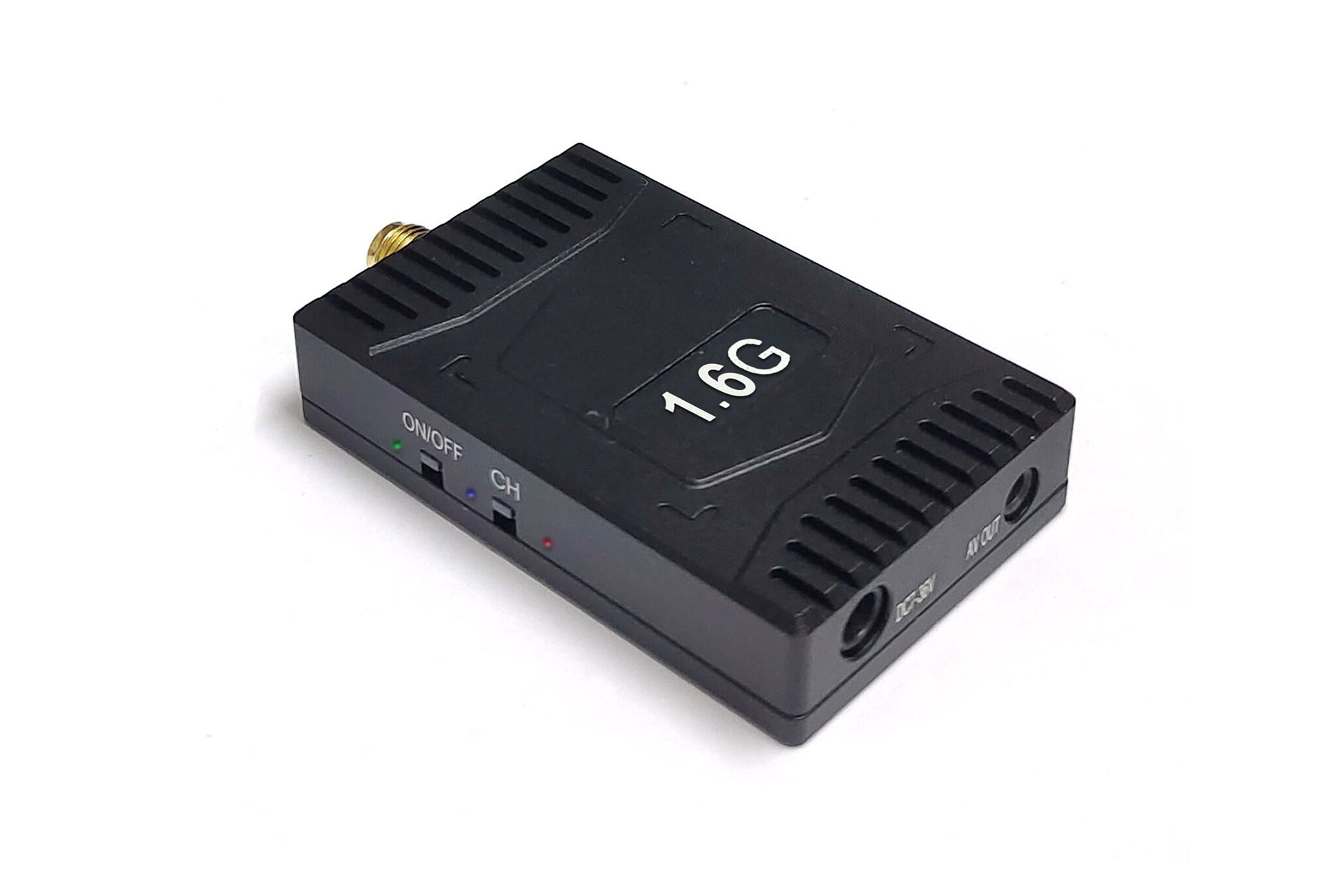

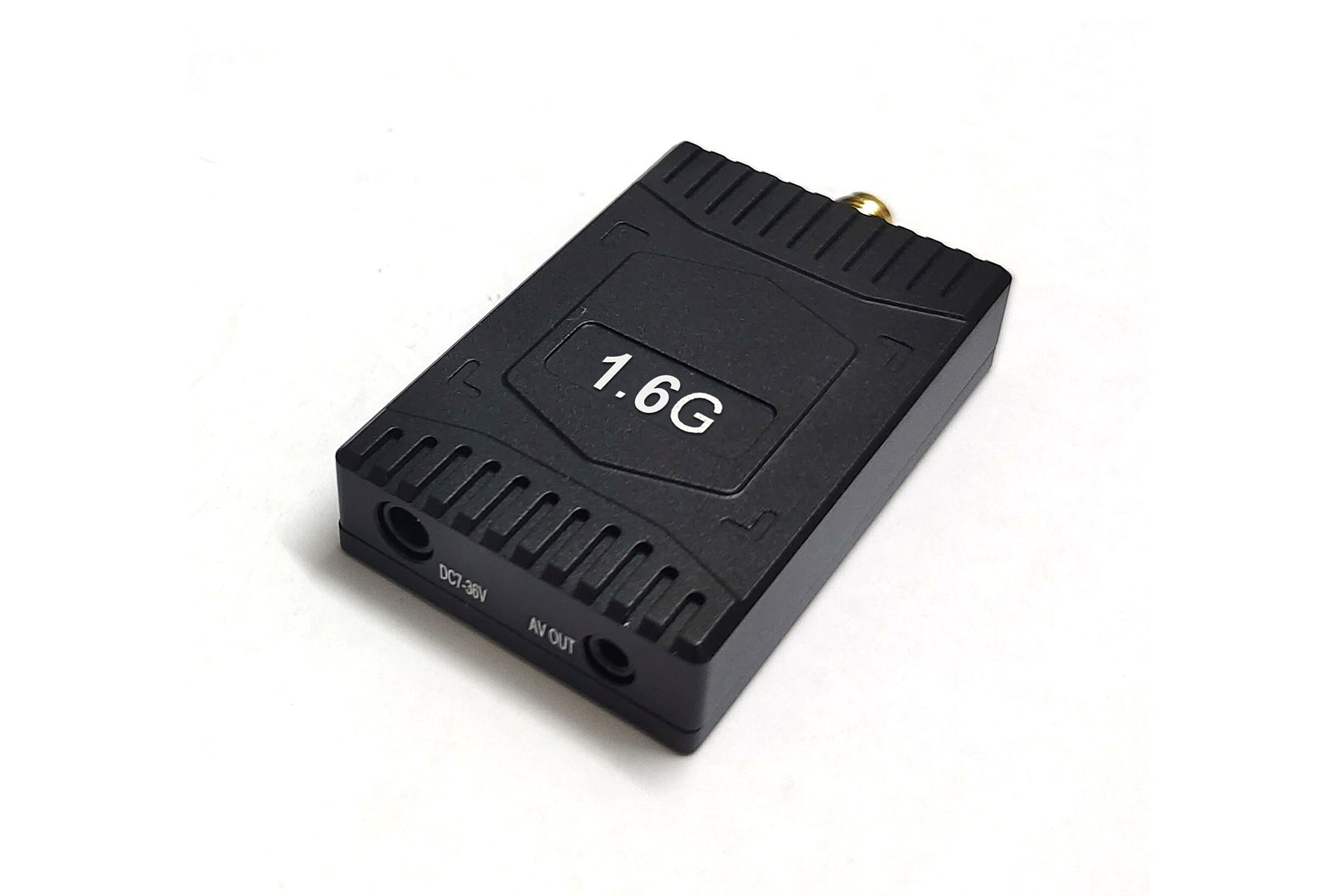

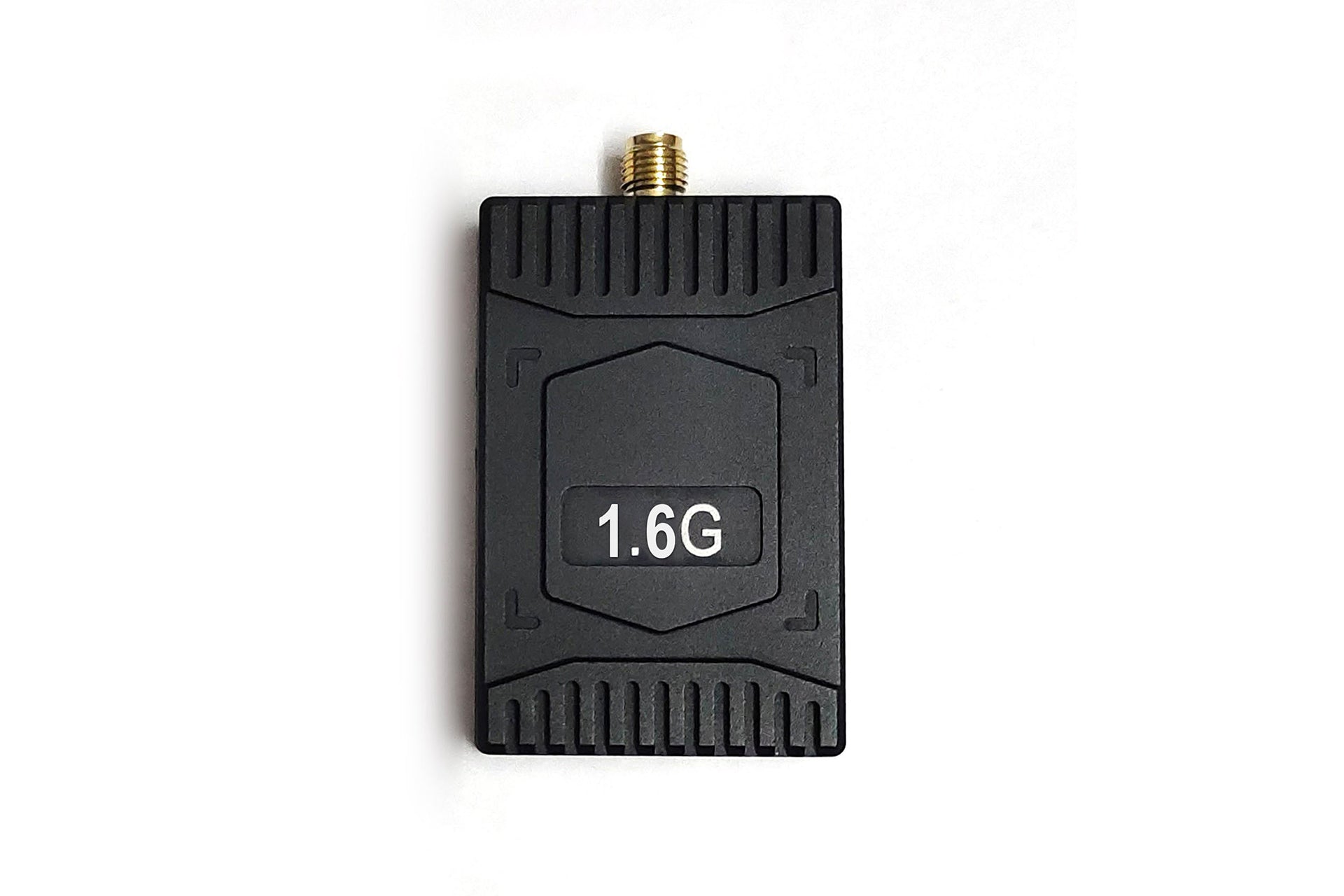

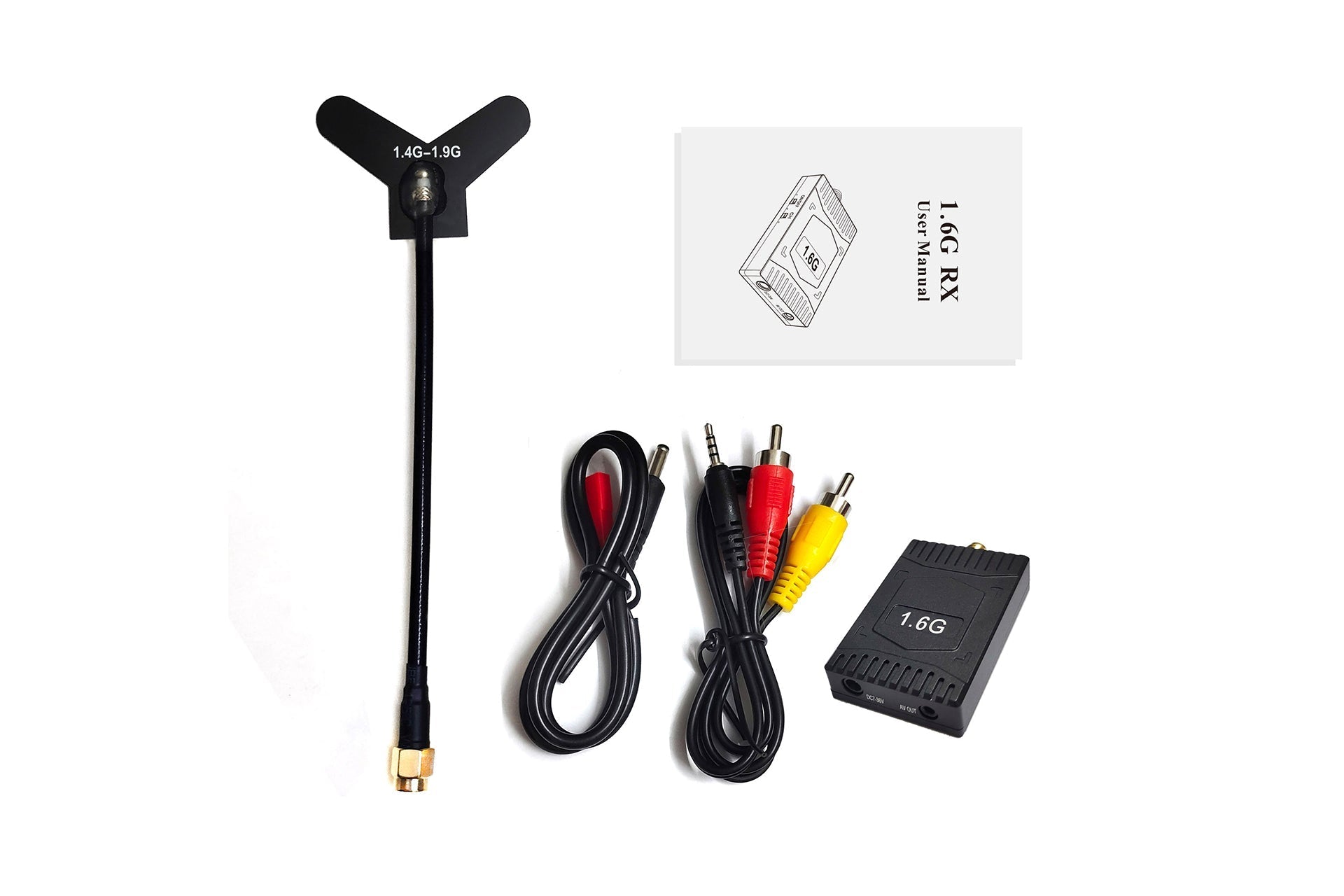

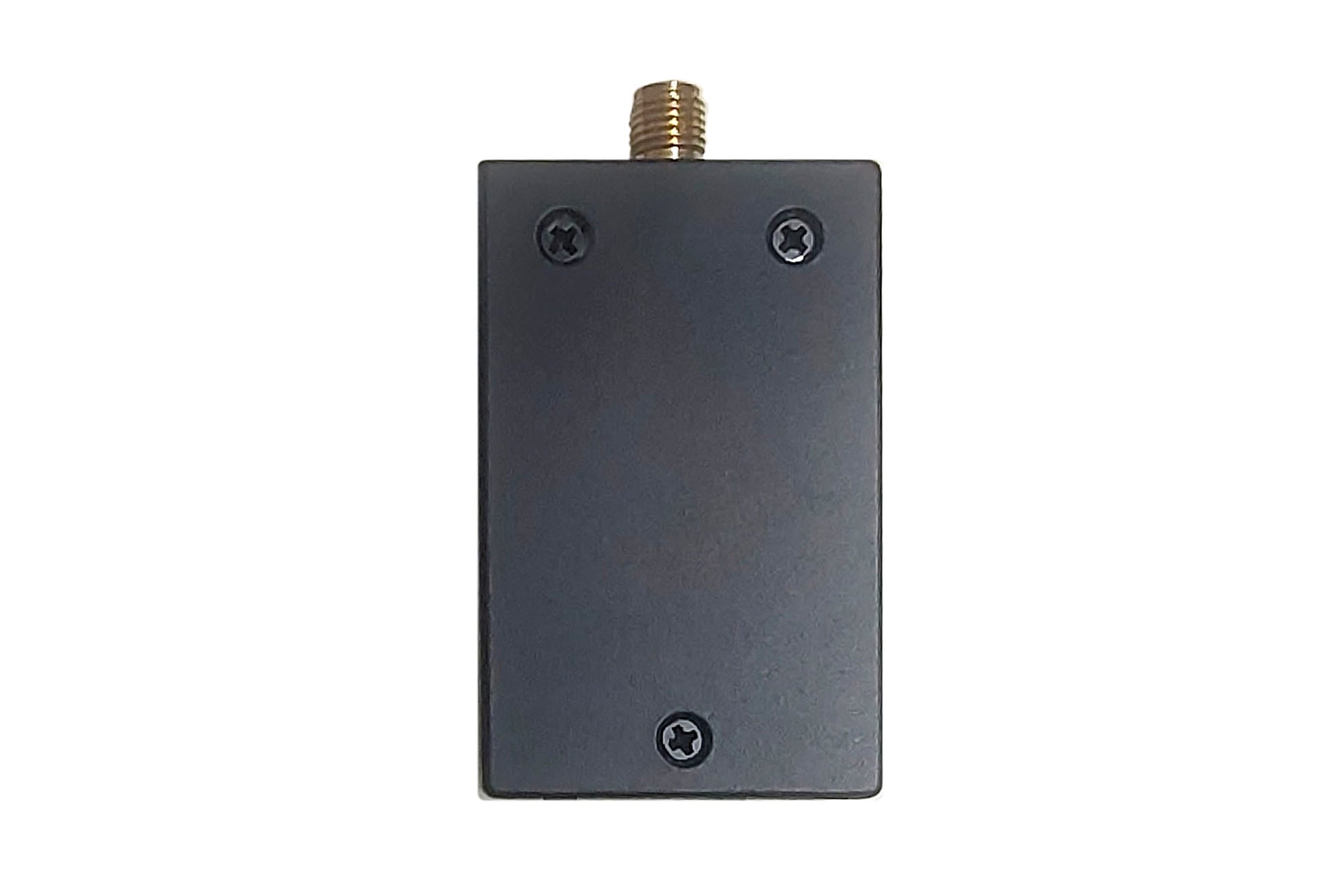

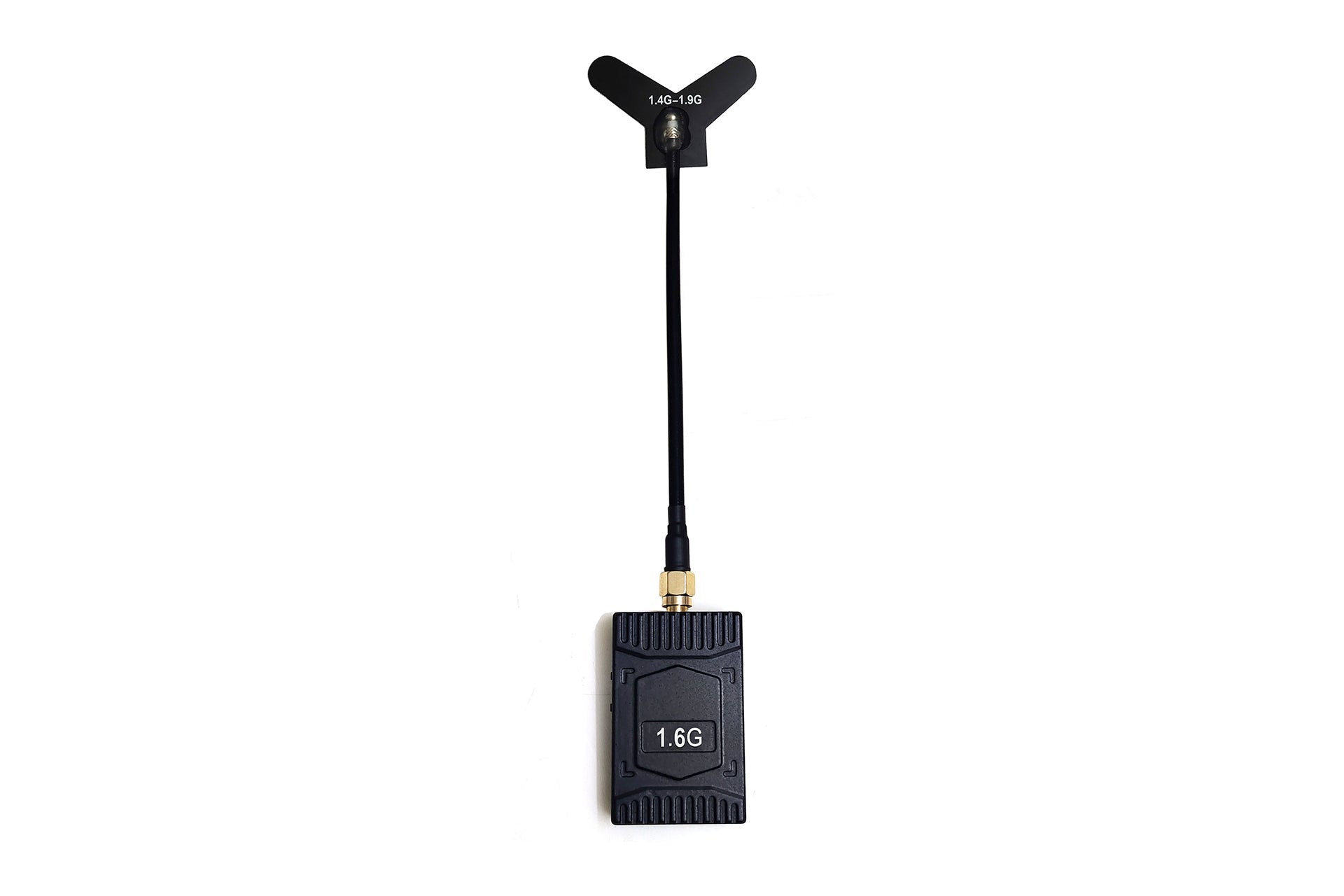

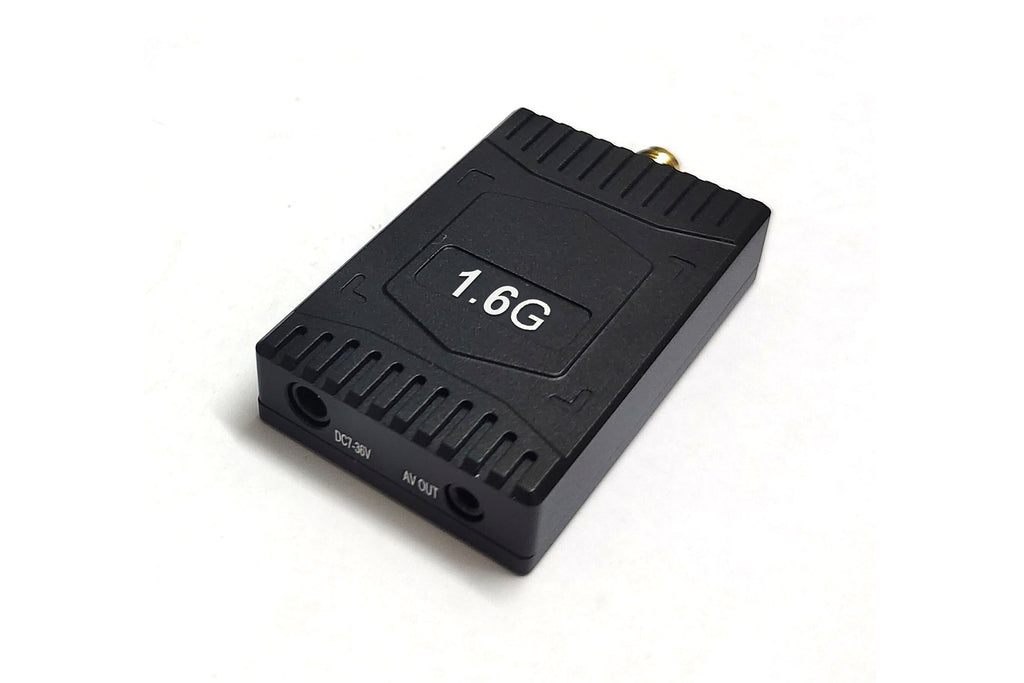

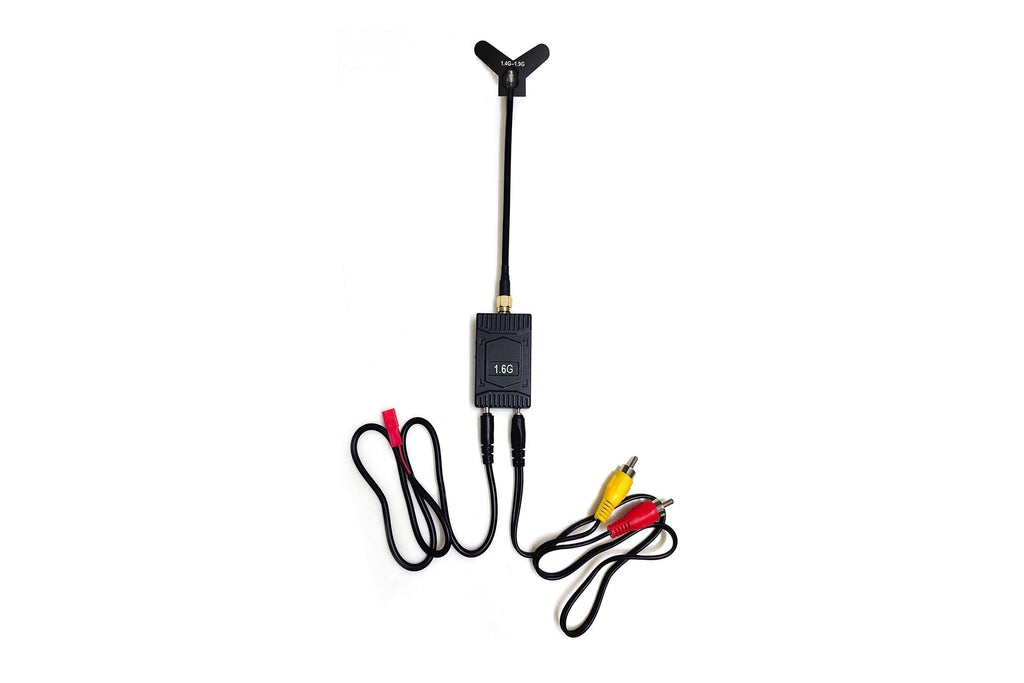

1.1.6G RX User mannel

Ⅲ. Instructions:

1. Set the frequency band

 @ Long press the 【Channel'Band】 button to set the A band
and B band,

@ The red indicator light in band A lights up, and the blue indicator light in band B lights up

2. Set up channels Short press the 【Channel‘Band】button to set the channel.The number of times the current band indicator light flashes,represents the channel, and channels 1-8 can be set in a loop.

3. Display

@ The preview status channel indicator light flashes periodically and cyclically,
@ The channel indicator follows the band light, for example, band A. The number of times the red indicator light flashes represents the channel value of band A.

4, Power contral

Long press the power button to enter standby mode, and the green indicator light will turn off. Long press again to enter normal working mode, and the green indicator light will tum on.

5. Product specifications

@ Antenna interface: SMA (outer screw inner hole) @ 50.2Ω
@ Receiving sensitivity:- 94dBm+1dBm
@ Receiving frequency: Channel Frequency Table (in MHz)

@ Video output: 1 Vp-p@i75 Ω
@ Power input: DC 6-26V
@ Power consumption: 1.2W @ 12V/100mMA
@ Size: 50x32x 11mm
@ Weight: 24. Sg(antenna not included)

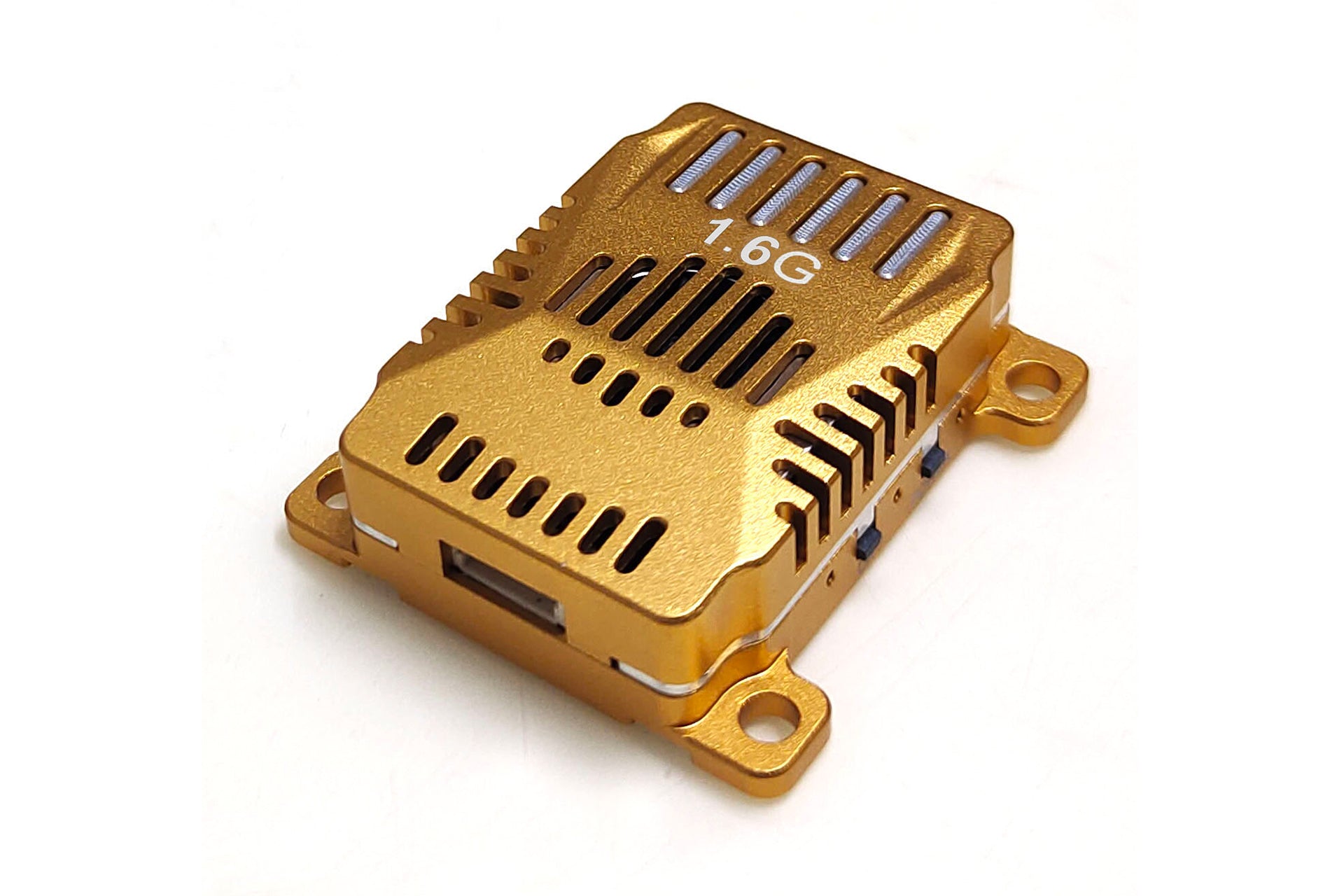

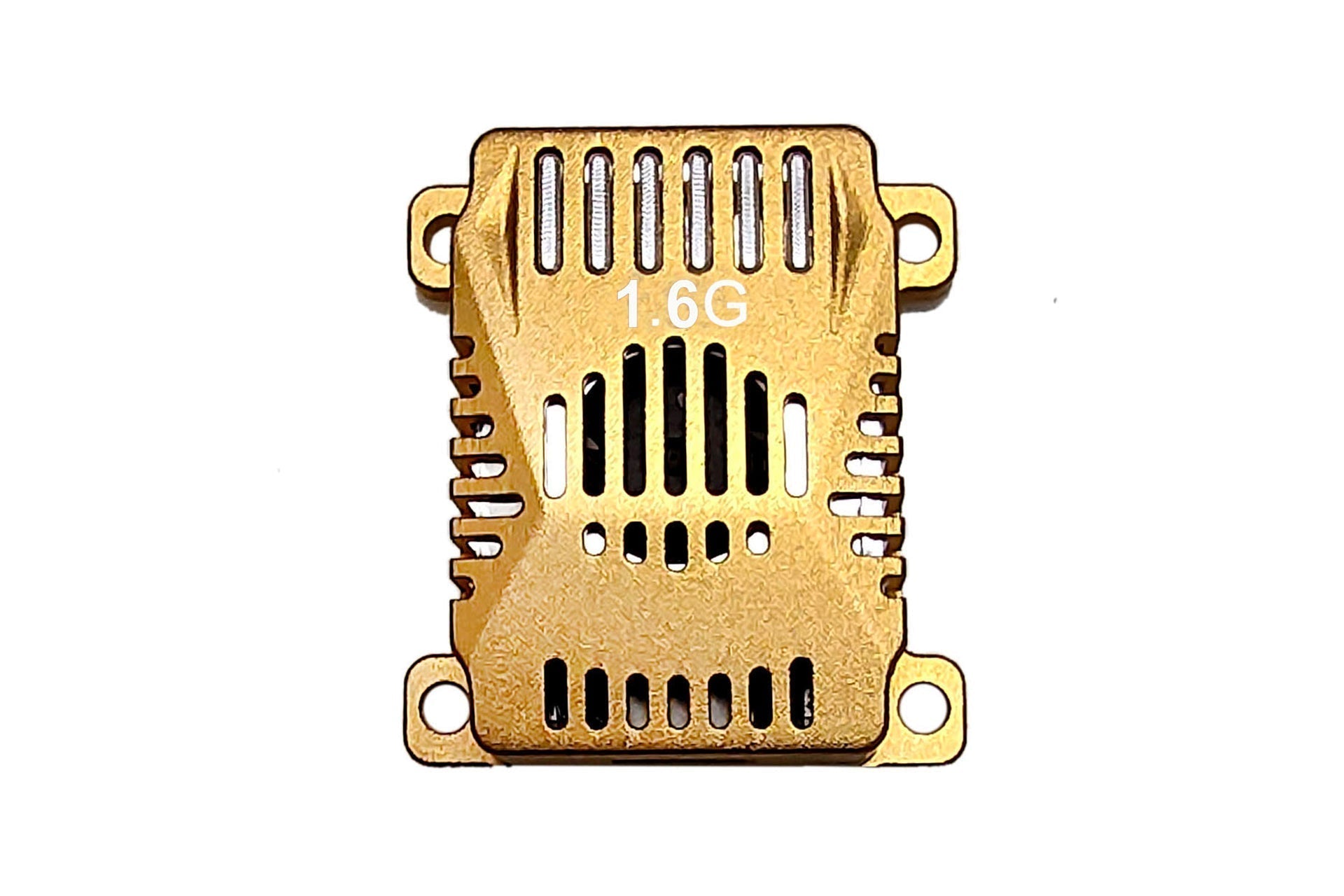

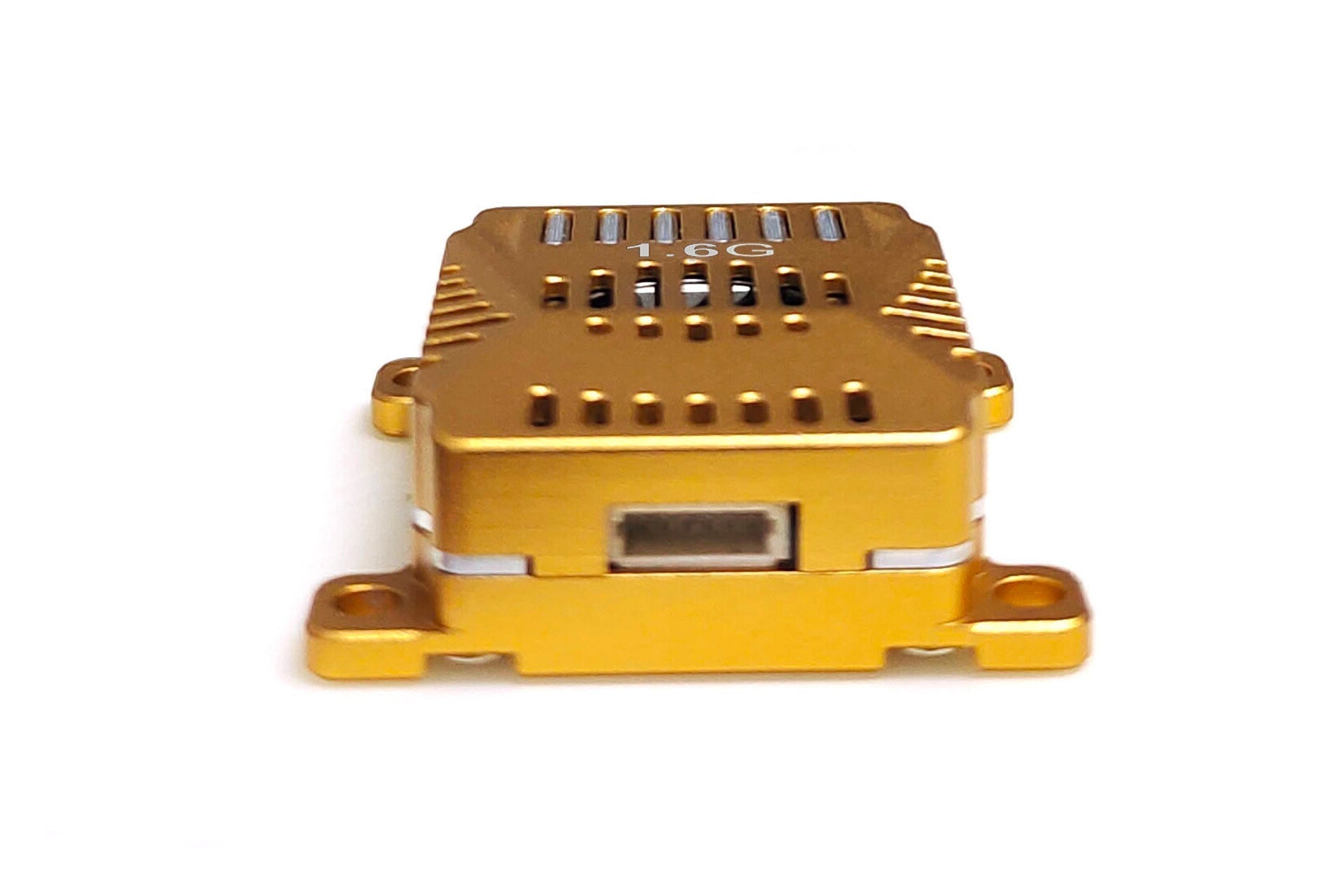

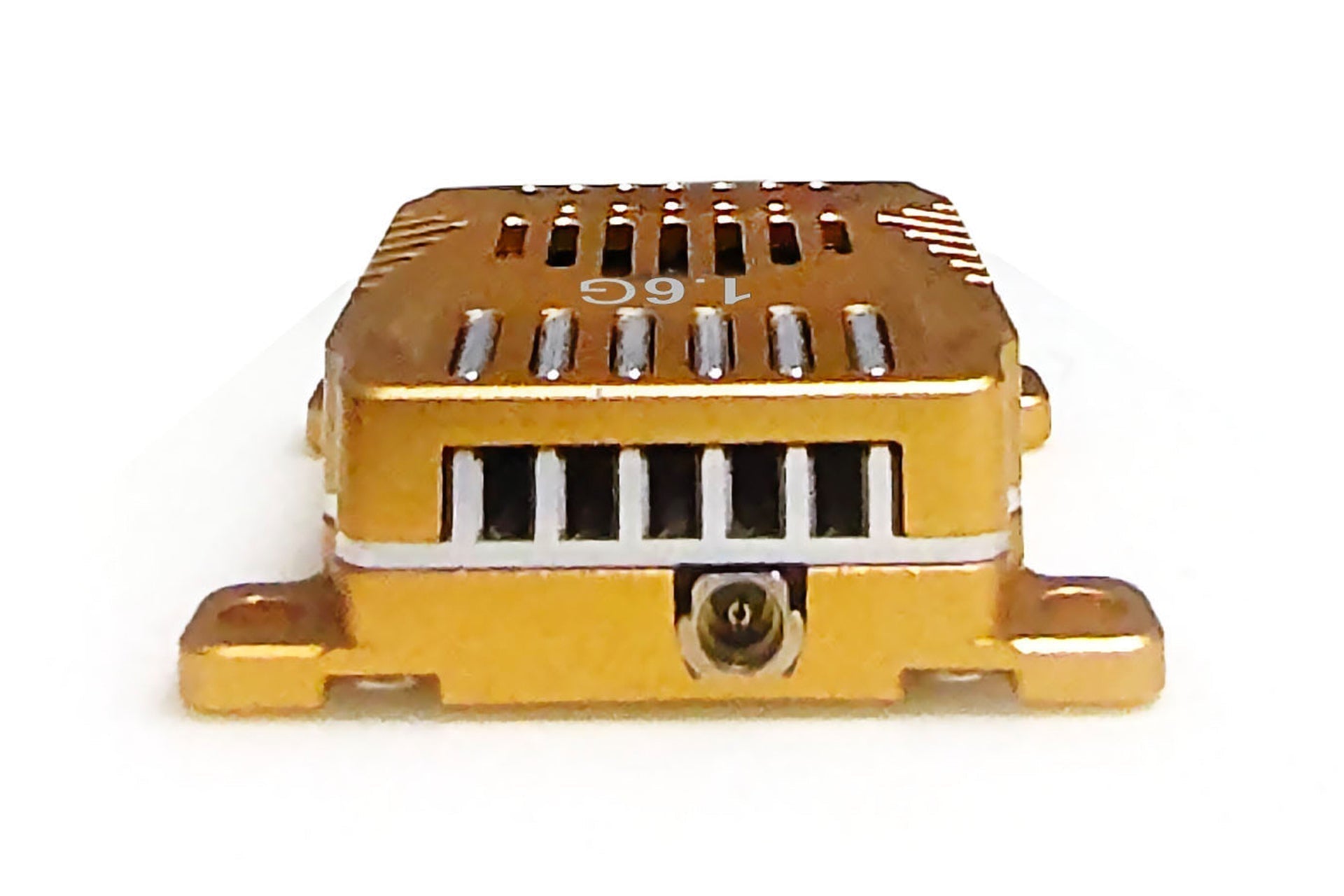

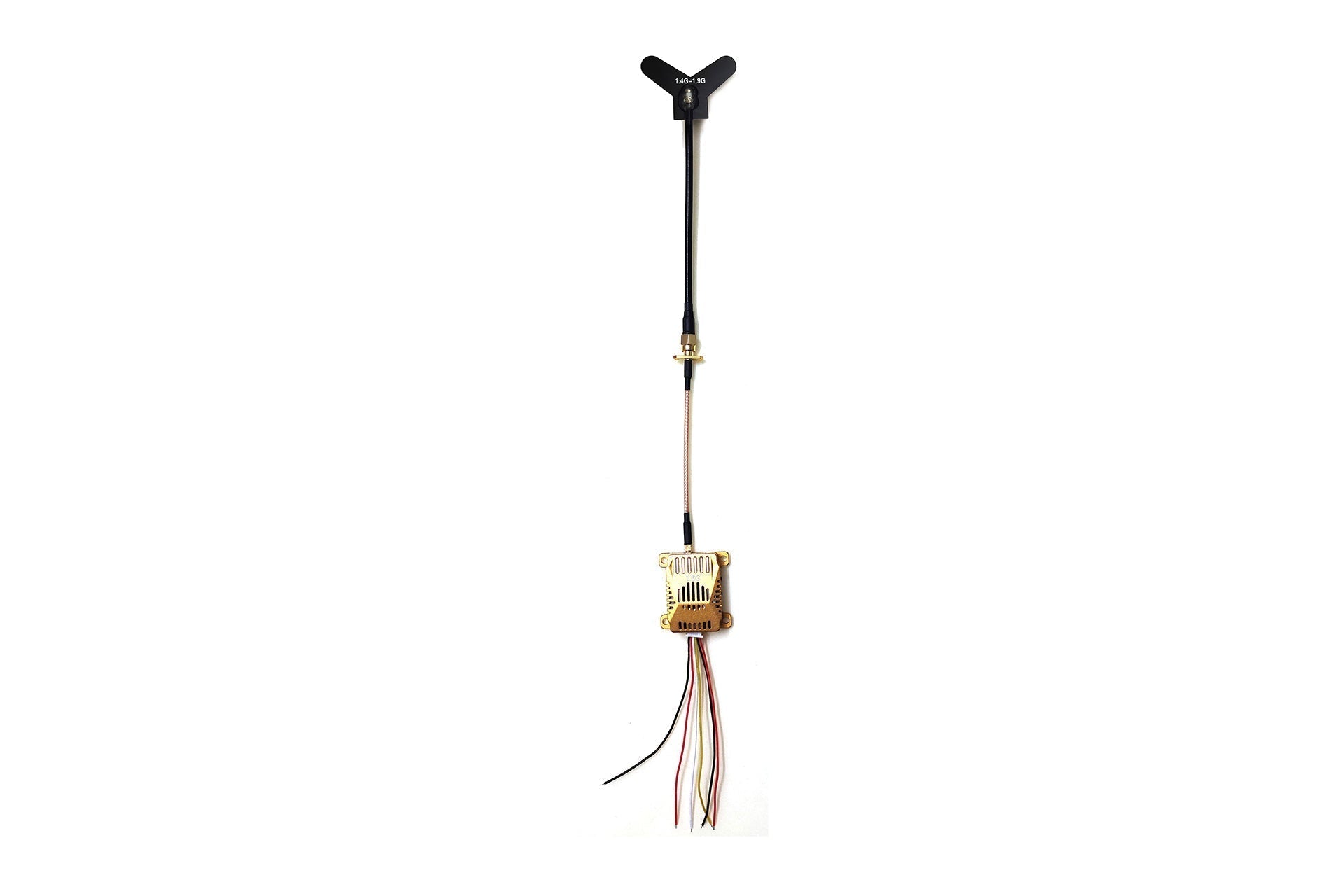

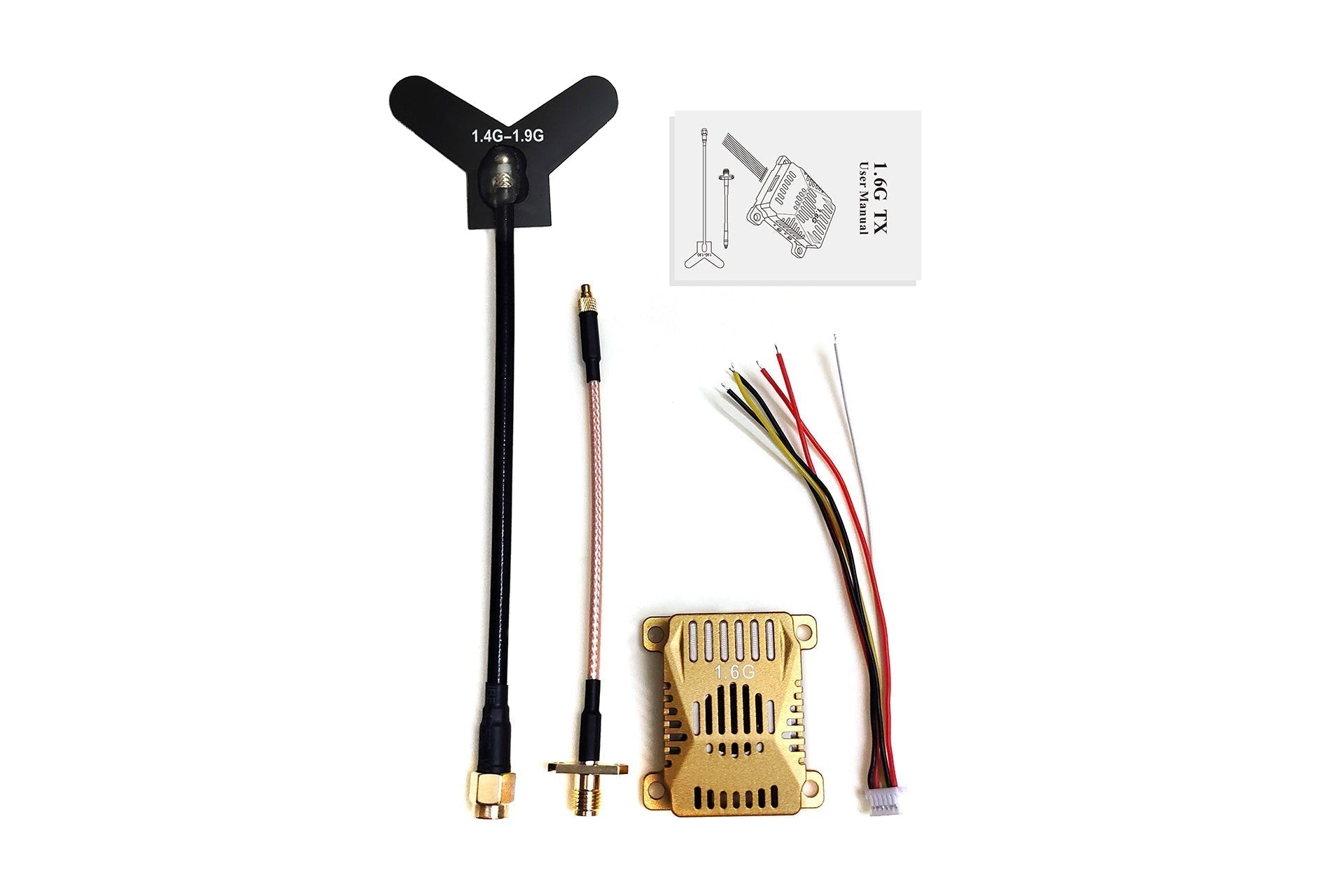

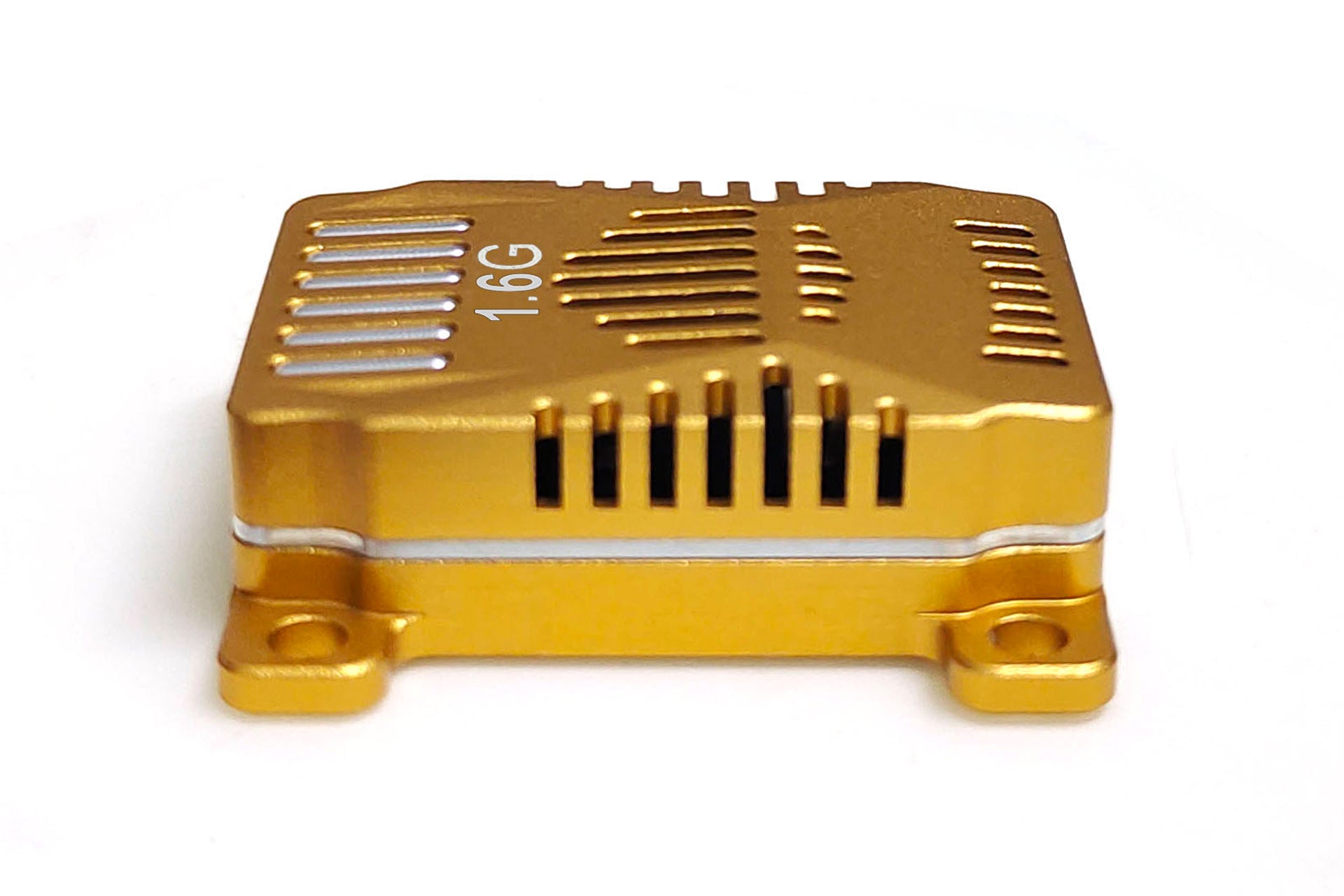

2.1.6G TX User mannel

Ⅲ. Instructions:

1. Set che frequency band

@ Long press the (ChannelBand] button to set the A band and B band,
@ The red indicator light in band A lights up, and the blue indicator light in band B lights up.

2. Set ap channels

Short press the [Channel:Band} button to set the channel. The number of times the current band indicator light flashes
Tepresents the channel, and channels 1-8 can be set in a loop.

3. Display

@ The preview status channel indicator light ashes periodically and cyclically,
@ The channel indicator follows the band light, for example, band A. The number of times the red indicator light flashes
represents the channel value of hand A,

4. Power control

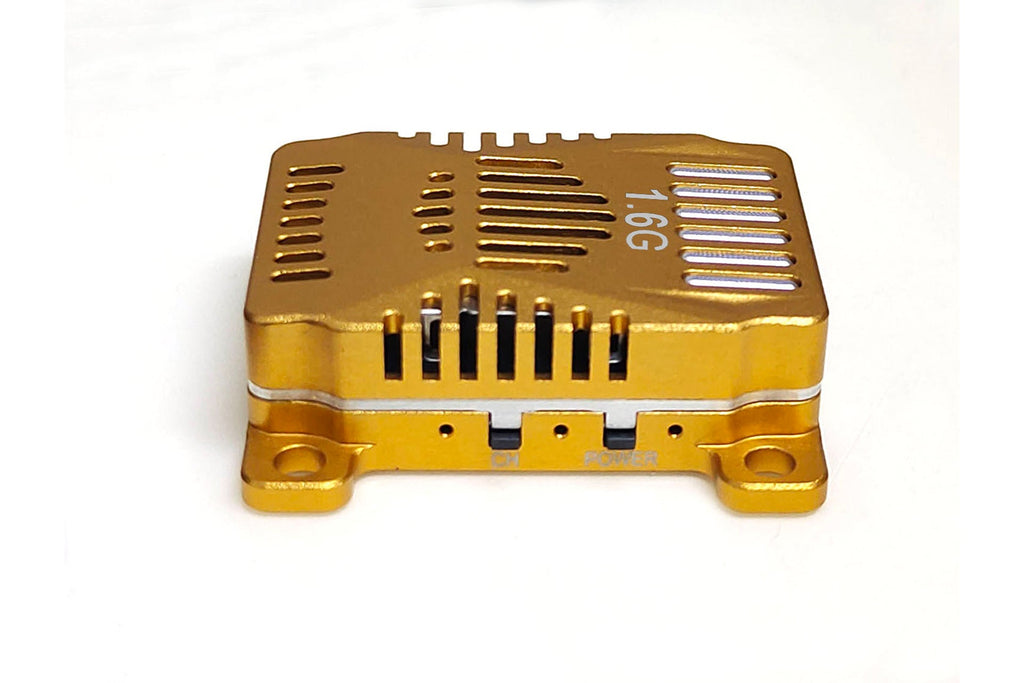

Shon press the 【Power】 button to set 3 power levels, and the green indicator light corresponds to the number of times.

5. IRC Tramp

This product supports IRC tram protocol to set parameters such as frequency and power. Please refer to the 【Betaflight Configurator】 software application instructions for details.

6. Product specifications

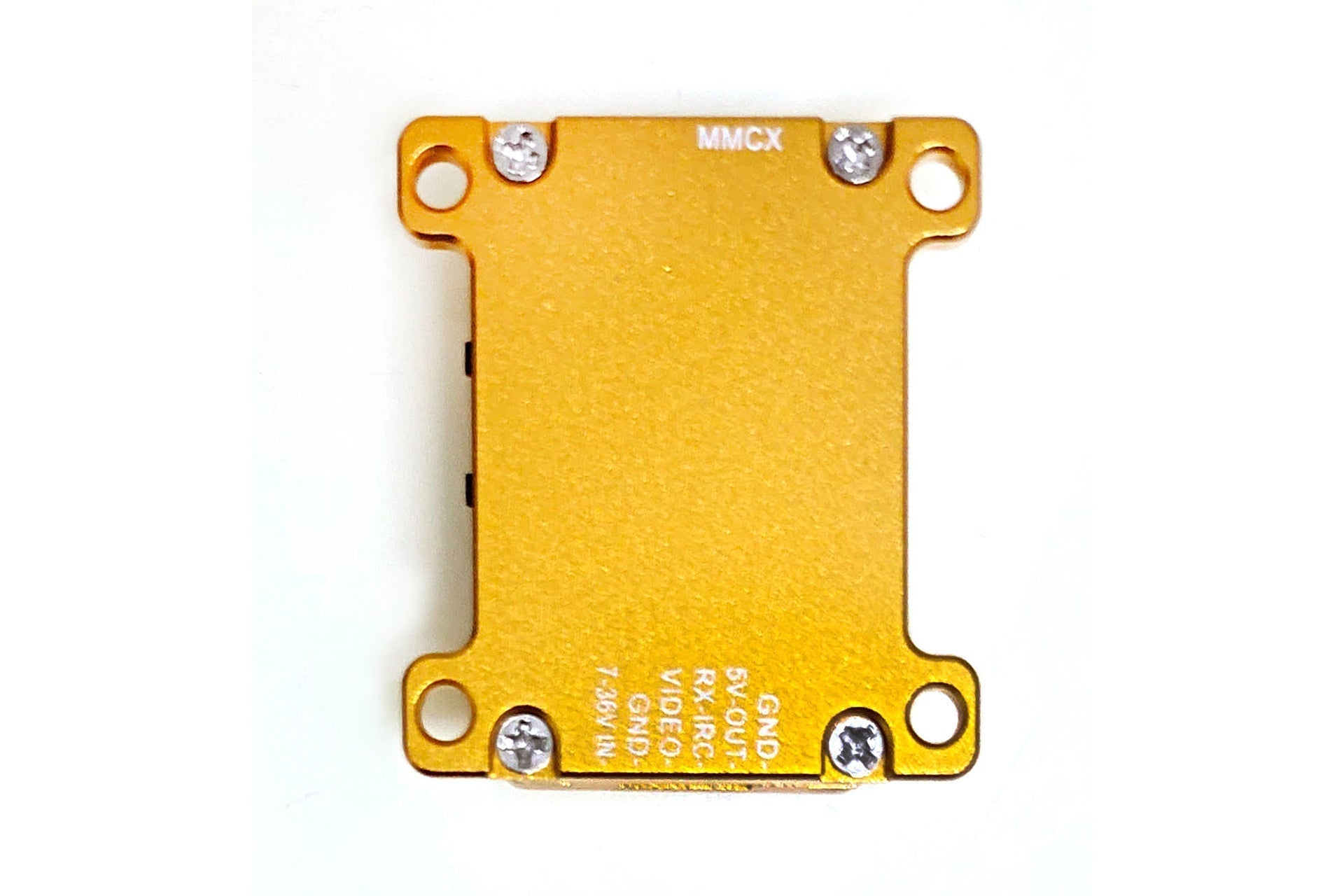

@ Antenna interface: MMCX@50 Ω
@ Transmission power: 25mW for Ist level, 1500mW for 2nd level, 3000mW for 3rd level
@ Transmission frequency: Channel Frequency Table (in MHz)

@ Video input: 1Vp-p@75 Ω
® Power input: DC 6-26V
@ 5V output: maximum 0.5A
@ Power consumption: approximately 6.6W @ 12V/550mA/3 levels
@ Size: 35x37x 12mm
@ Weight: 21. 5g(antenna not included)
