Adding this gain panel can reach a transmission distance of 40km
Description:
This is a brand-new wireless video transmission device, which adopts FM modulation mode and brand-new frequency, avoiding the standard frequency of 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission that has been used more in the same range, and is more suitable for use in complex environments. The receiver sensitivity is -85dBm, and the transmitted image is clear and stable. With a ground high-gain antenna, it can transmit 2~4km in the open area of the city, and about 40km in the air-to-ground LOS with high gain antenna (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).
The transmitter is exquisitely crafted, made of special metal, and also has a high-speed fan, which is more conducive to heat dissipation and more suitable for long-term work.
Equipped with a composite connection cable, it is easier to connect the power supply and camera.
The long range video transmitter and receiver is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but also can be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (frequencies are customizable).

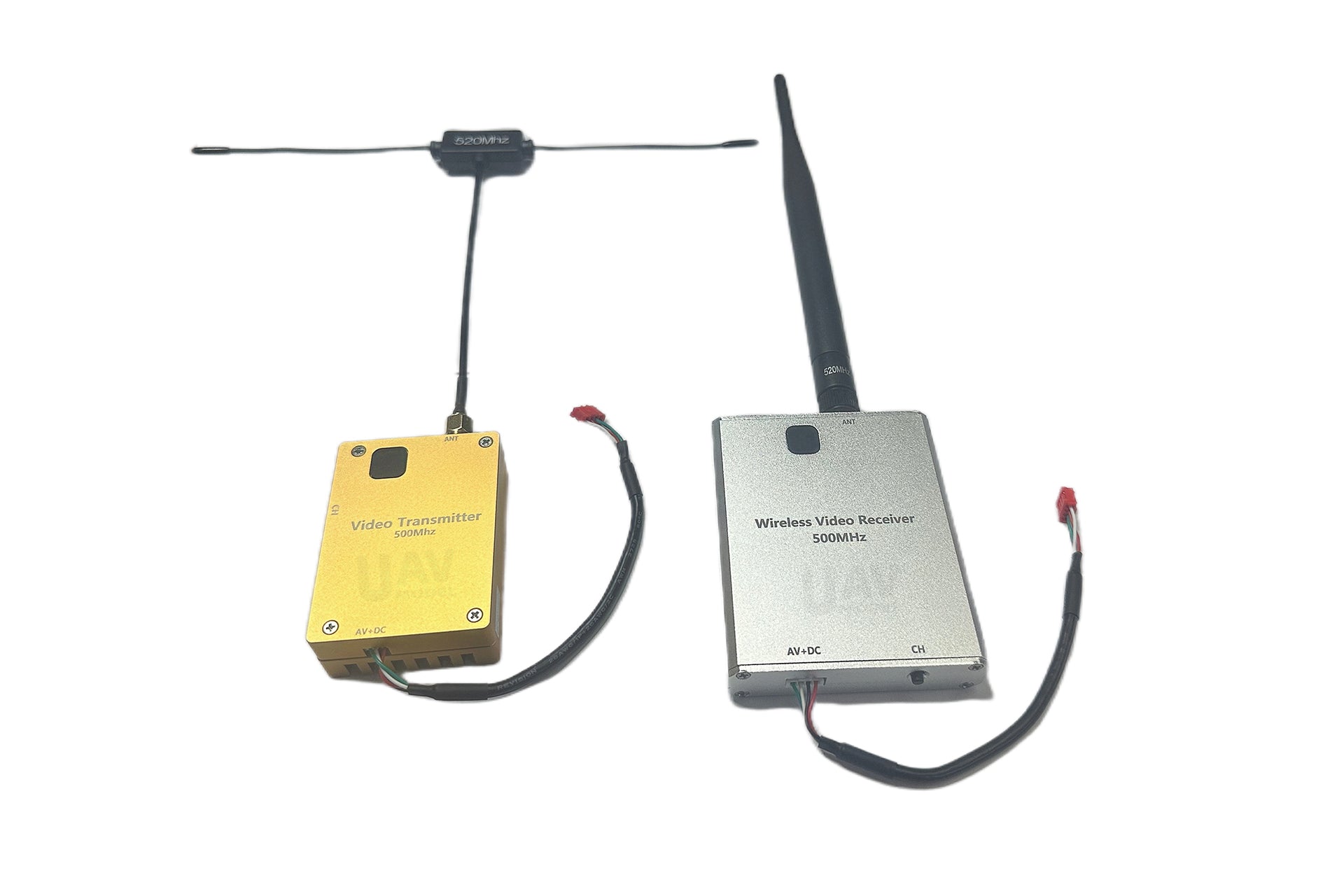

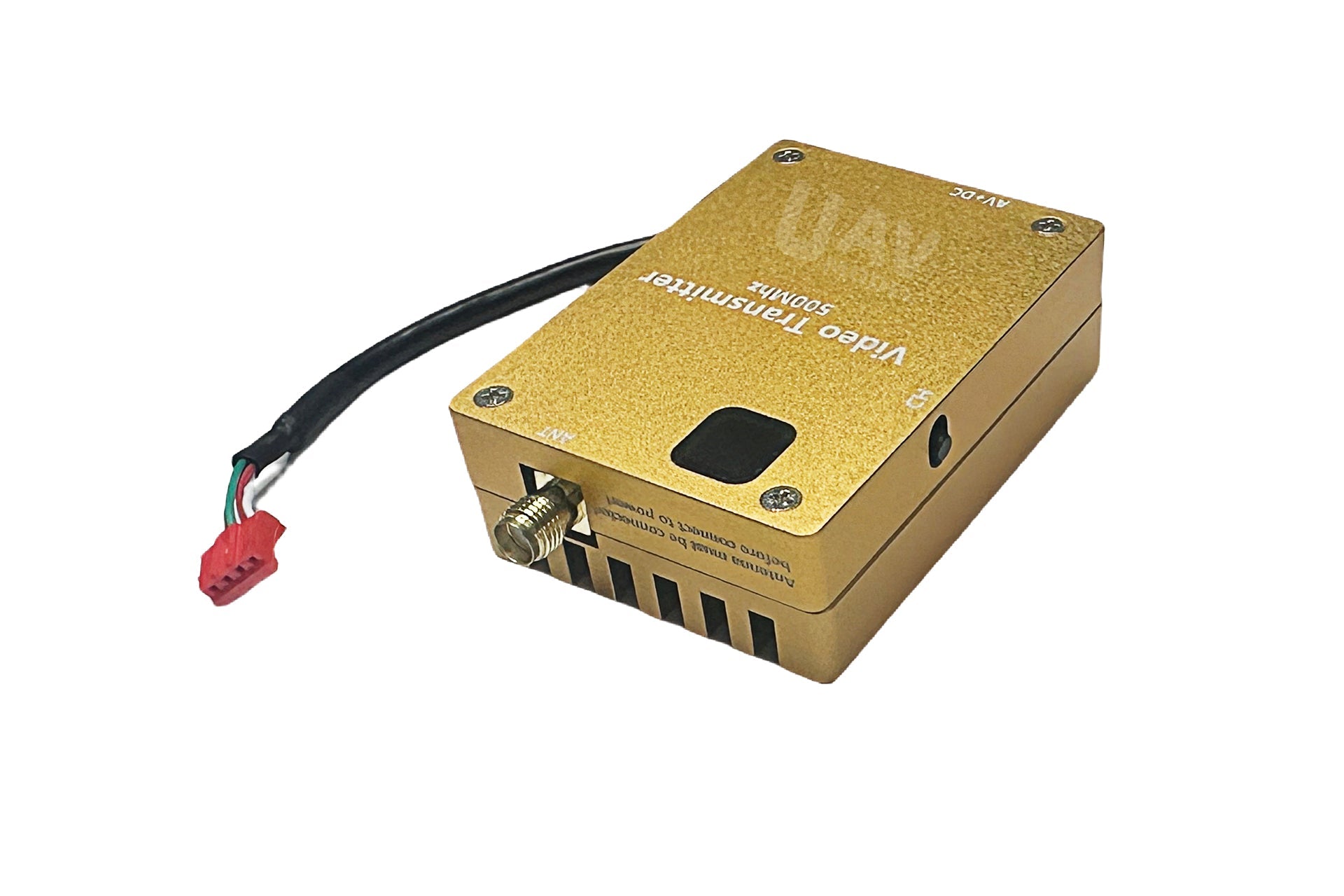

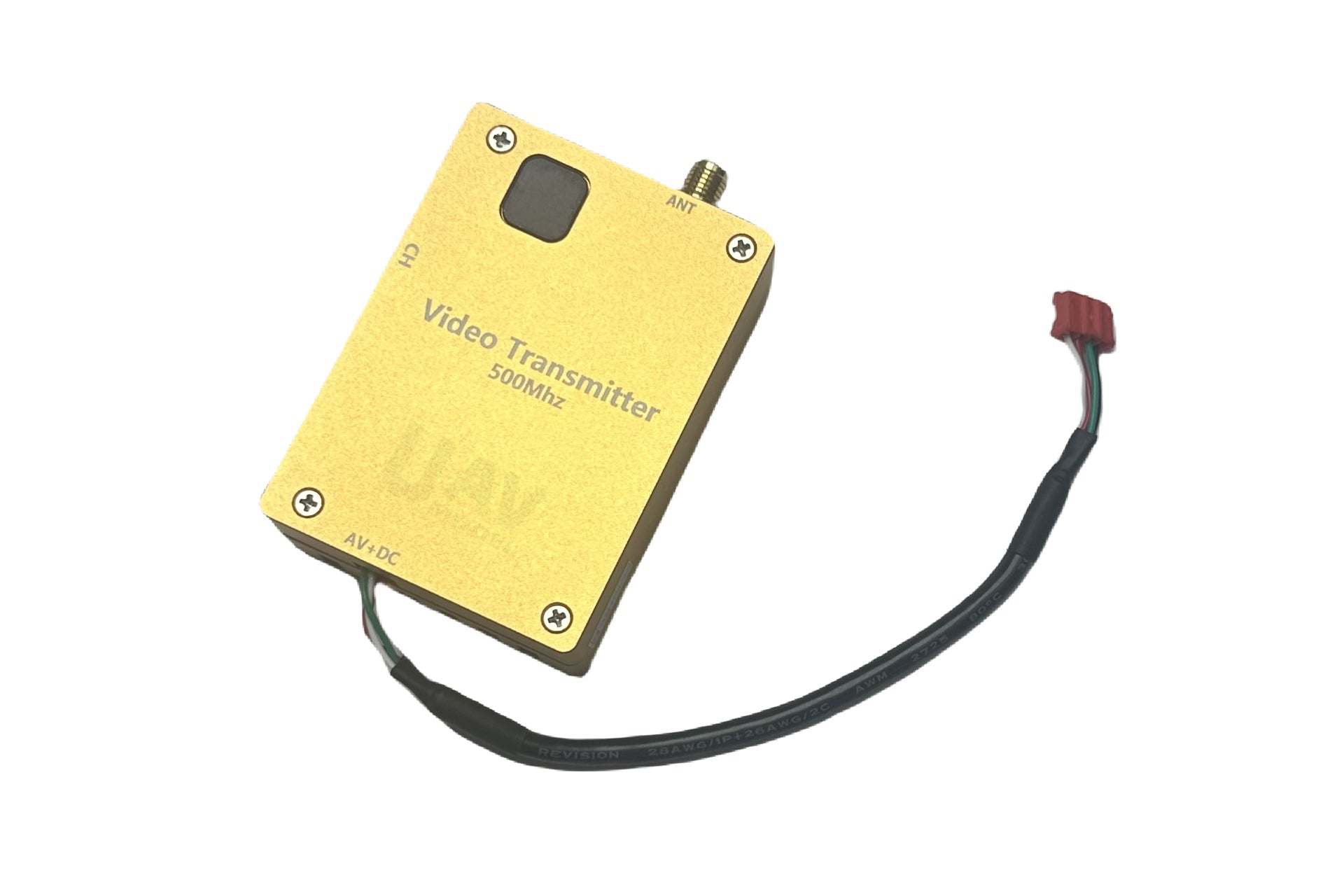

VTX Specification:
| Product | Analog video transmitter |
| Voltage | DC 10V~36V |
| Current | 900mA |
| Modulation | FM |
| Frequency | 300Mhz~900Mhz (optional) |
| Channels | 8 channels |
| Frequency band (choose one series) | 300Mhz: (320Mhz, 340Mhz, 360Mhz, 380Mhz) (customization) |
| 500Mhz: (490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz, 620Mhz) | |
| 600Mhz: (620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz) | |
| 800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) | |
| Transmit Power | 4 watt |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Transmitter Weight | 83g |
| Dimensions | 64*46*20mm (antenna port not included) |

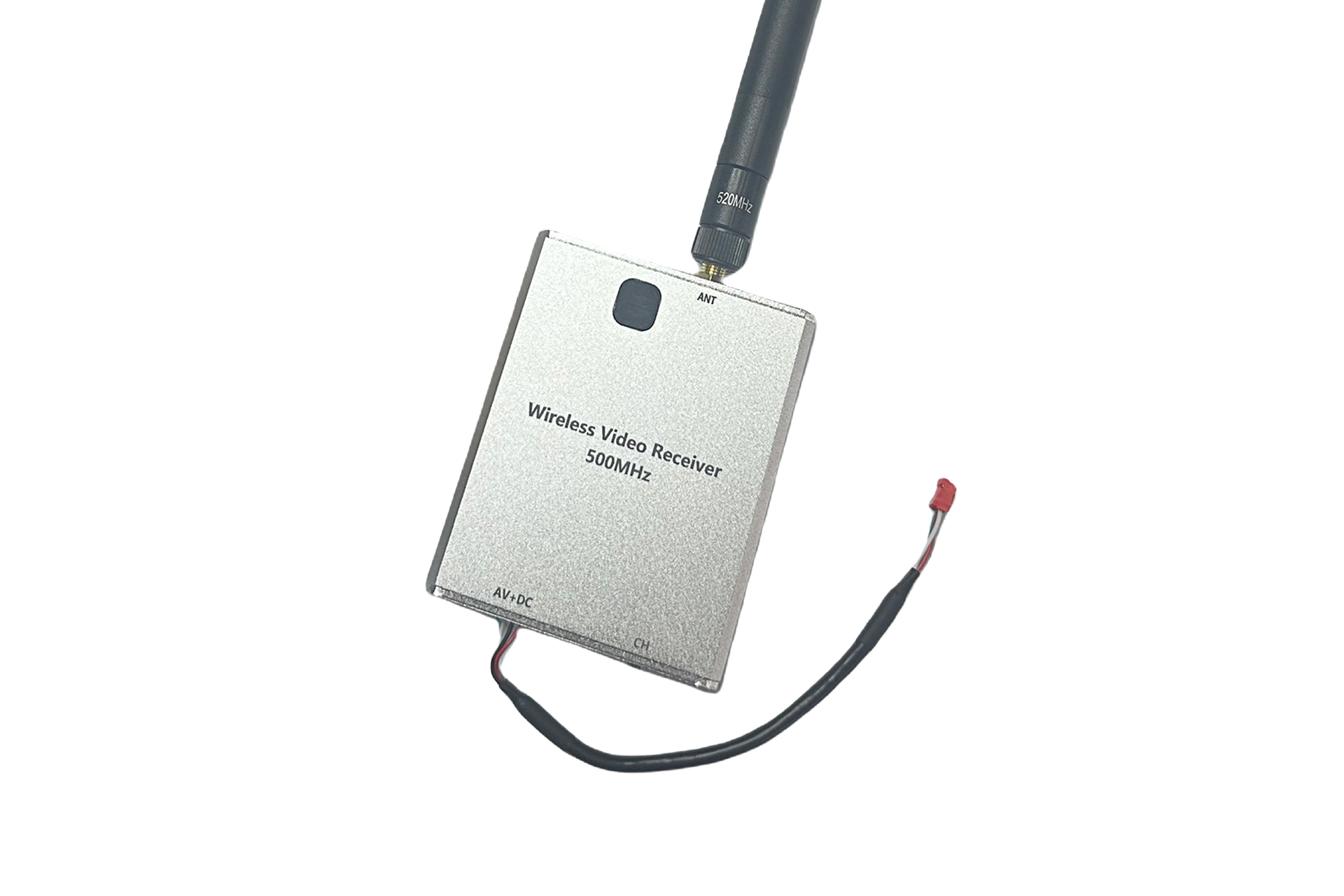

VTX Specification:
| Product | Analog video receiver |
| Voltage | DC 10V~18V |
| Receiving sensitivity | -85dBm |
| Modulation | FM |
| Frequency | 300Mhz~900Mhz (optional) |
| Channels | 8 channels |
| Frequency band (choose one series) | 300Mhz: (320Mhz, 340Mhz, 360Mhz, 380Mhz) (customization) |
| 500Mhz: (490Mhz, 500Mhz, 520Mhz, 540Mhz, 560Mhz, 580Mhz, 600Mhz, 620Mhz) | |
| 600Mhz: (620Mhz, 640Mhz, 660Mhz, 680Mhz, 700Mhz, 720Mhz, 740Mhz, 760Mhz) | |
| 800Mhz: (800Mhz, 820Mhz, 840Mhz, 860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz) | |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA female |
| Weight | 83g |
| Dimensions | 83*68*15mm (antenna port not included) |
VRX = Video Receiver (RX = receive)
In the context of FPV (First-Person View) systems, a VRX is a device that receives the video signal transmitted from an FPV camera through a VTX (video transmitter) and displays it on FPV goggles or monitor.
Order tell customer service frequency band：300Mhz/500Mhz/600Mhz/800Mhz（Default shipment is 1.2Ghz）
Antenna must be connected before connect to power, otherwise it will be easy to burned-out!
（The receiver and transmitter are female, and the antenna part is male）
Installing:
A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack
B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation
C. Set the same channel with transmitter and receiver
