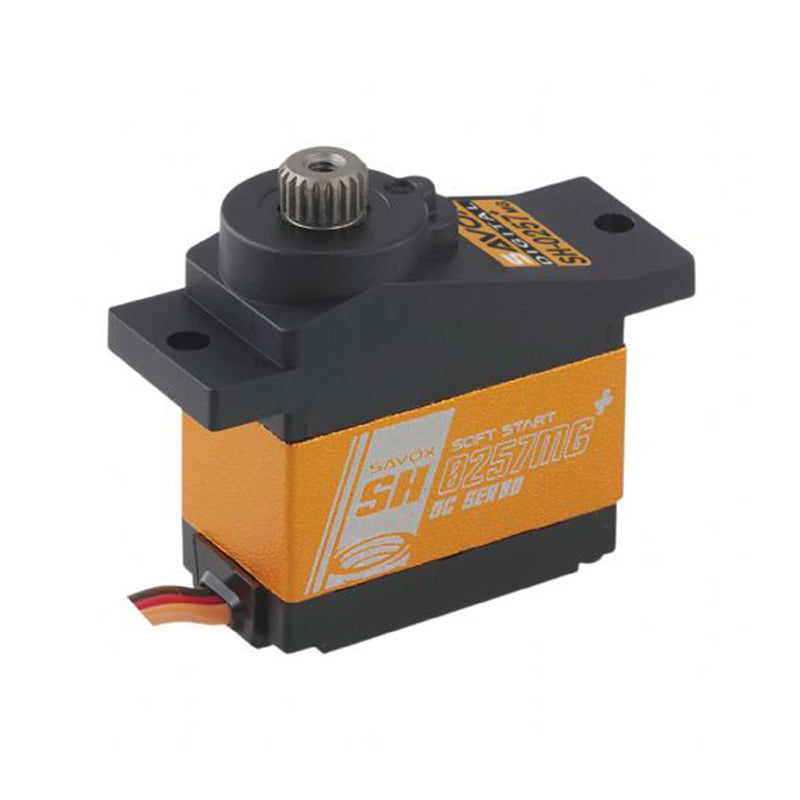

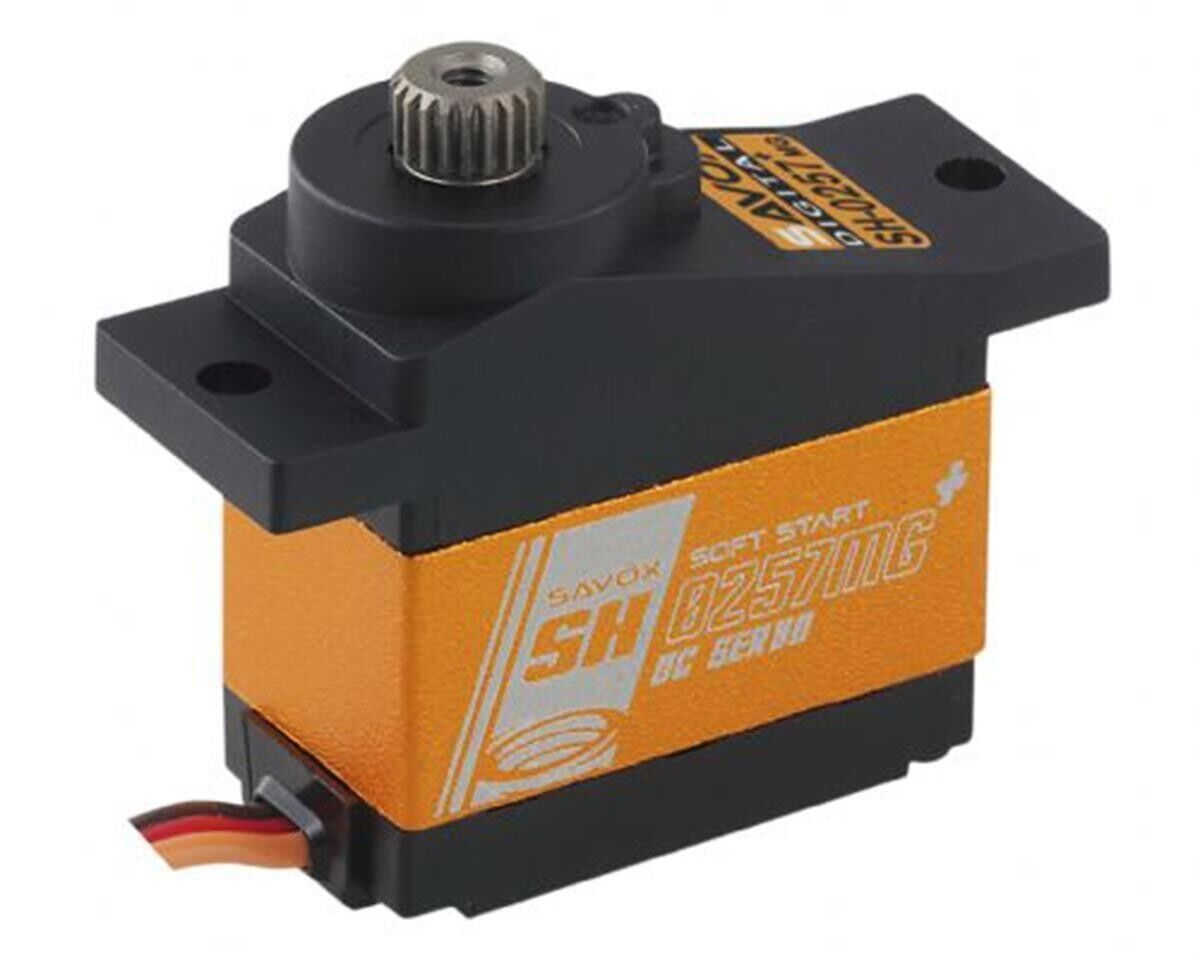

This is the SH-0257MGP Digital Metal Gear "High Speed" Micro Servo. The Savox SH-0257MG metal-gear, high-torque, digital, micro servo produces as much output torque as larger servos, but without sacrificing speed.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility. *NOTE: Certain combinations of receiver and ESC have been found to cause "Brown Out" issues when combined with Savox servos. An external BEC, or BEC stabilizing receiver capacitor may be needed for efficient, glitch free operation in low voltage electric applications. Features:
|
TECHNICAL SPECS:

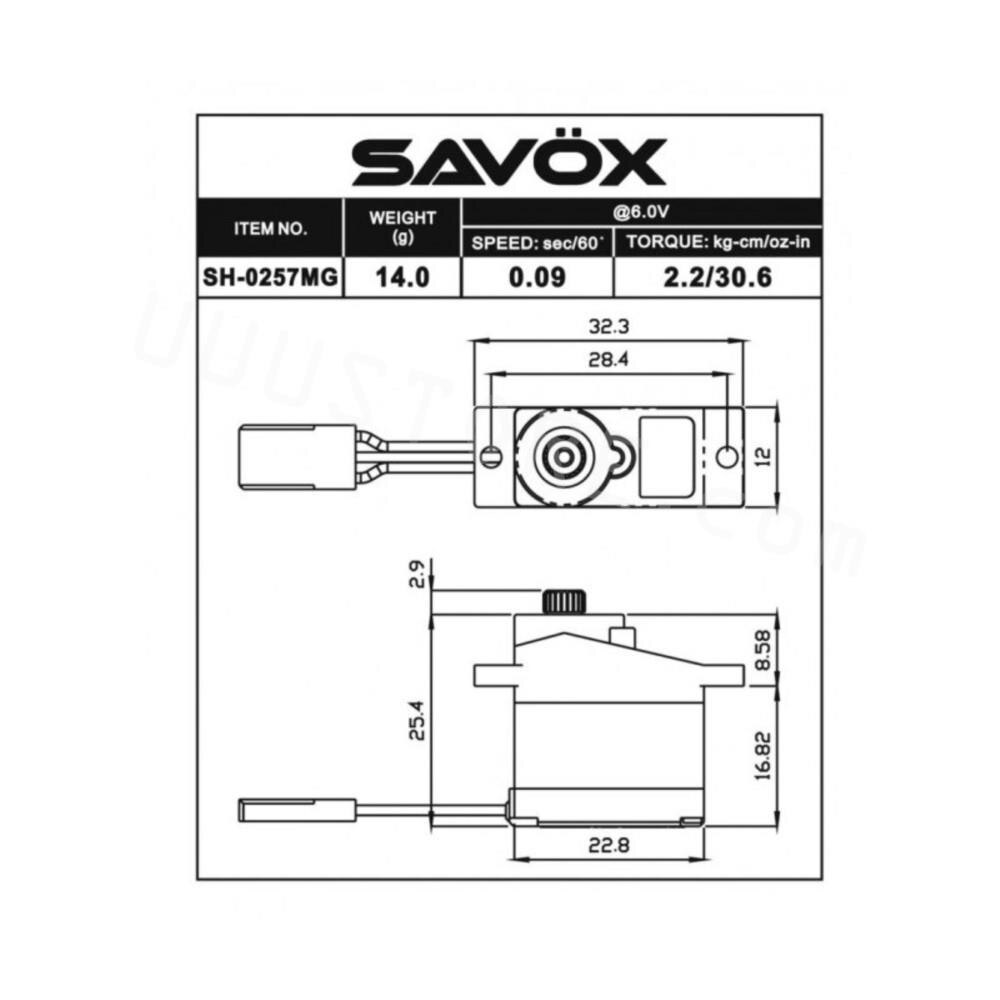

- Dimensions(mm): 22.8X12.0X25.4
- Weight(g): 14.0
- Speed(@4.8V sec/60): .13
- Torque(@4.8V oz-in): 25.0
- Speed(@6.0V sec/60): .09
- Torque(@6.0V oz-in): 30.6
- Gear: Metal
- Bearing: 1BB
- Case: Aluminum
- Running current (at no load): 150 mA @ 4.8V
- Running current (at no load): 180 mA @ 6.0V
- Stall current (at locked): 1000 mA @ 4.8V
- Stall current (at locked): 1200 mA @ 6.0V
- Idle current (at stopped): 5 mA @ 4.8V
- Idle current (at stopped): 5 mA @ 6.0V
- Limit angle: 220°±10°
- Connector wire gauge: #26 AWG
- Connector wire length: 250 ±5 mm
- Horn gear spline: 21T
- Control system: Pulse width modification
- Amplifier type: Digital Controller
- Operating Travel: 90° (when 1000→2000 μsec)
- Neutral position: 1500 μsec
- Dead band width: 5 μsec
- Rotating direction: Clockwise (when 1500→2000 μsec)
- Pulse width range: 700→2300 μsec
-
Maximum travel: Approx 150° (when 700→2300 μsec)
Specifications:
- Torque:
- @4.8v: 1.8kg (25.0oz-in)
- @6v: 2.2kg (30.6oz-in)
- Speed:
- @4.8v: 0.13 sec/60 deg
- @6v: 0.09 sec/60 deg
- Dimensions (LxWxH): 22.8x12.0x25.4mm
- Weight: 14.0g
