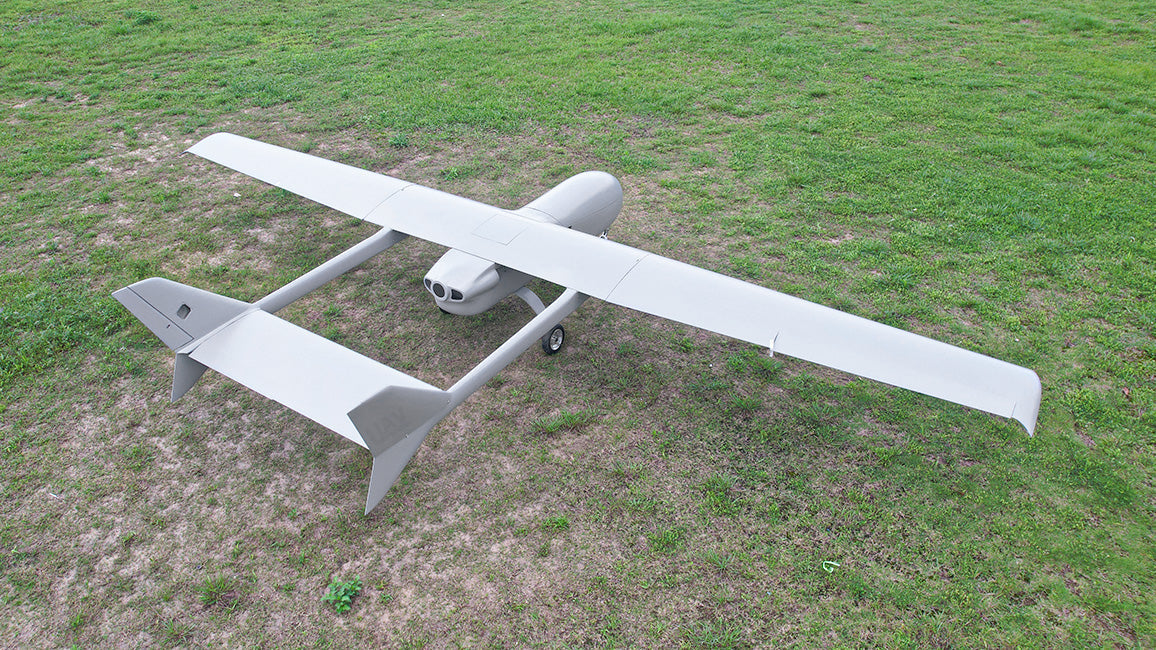

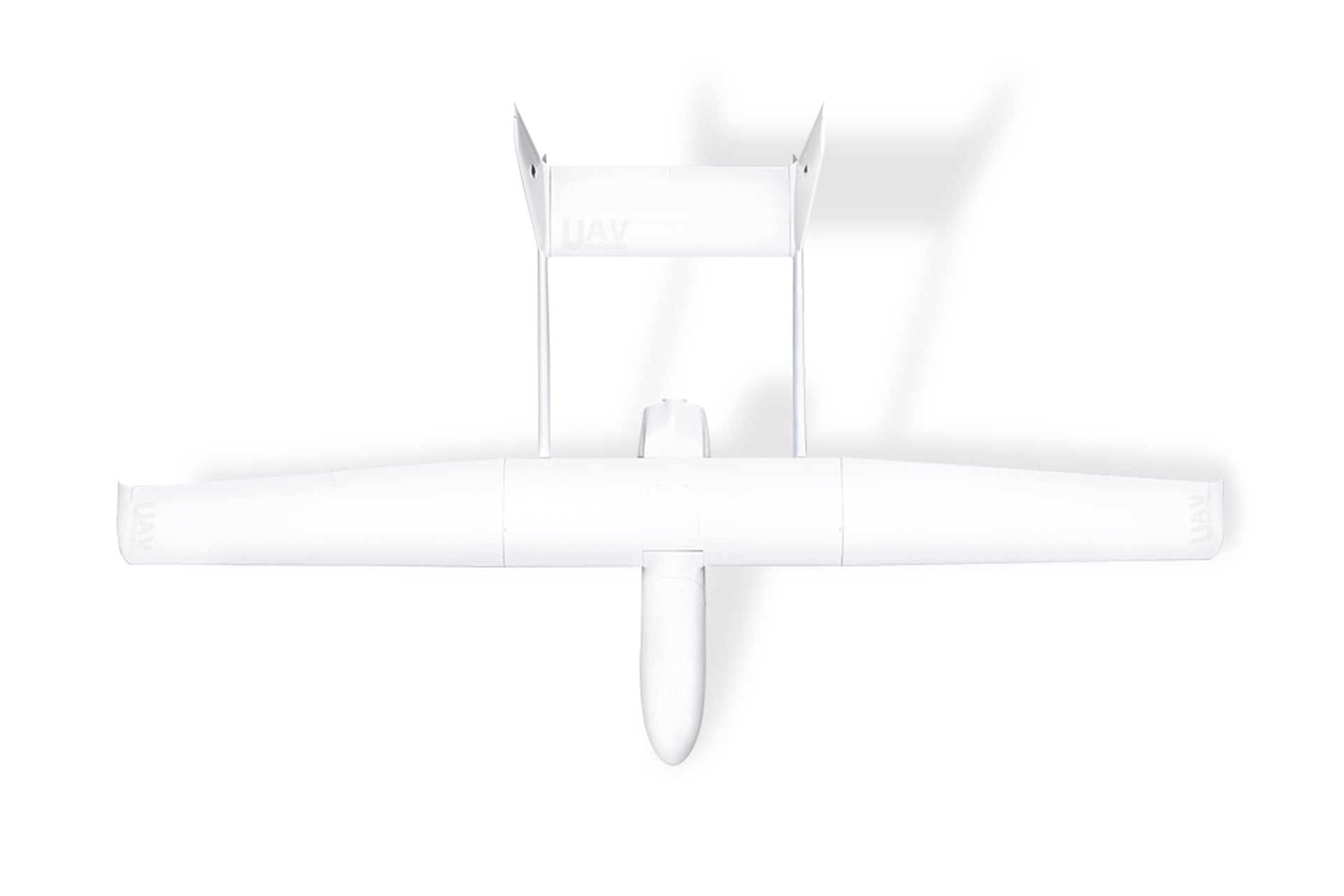

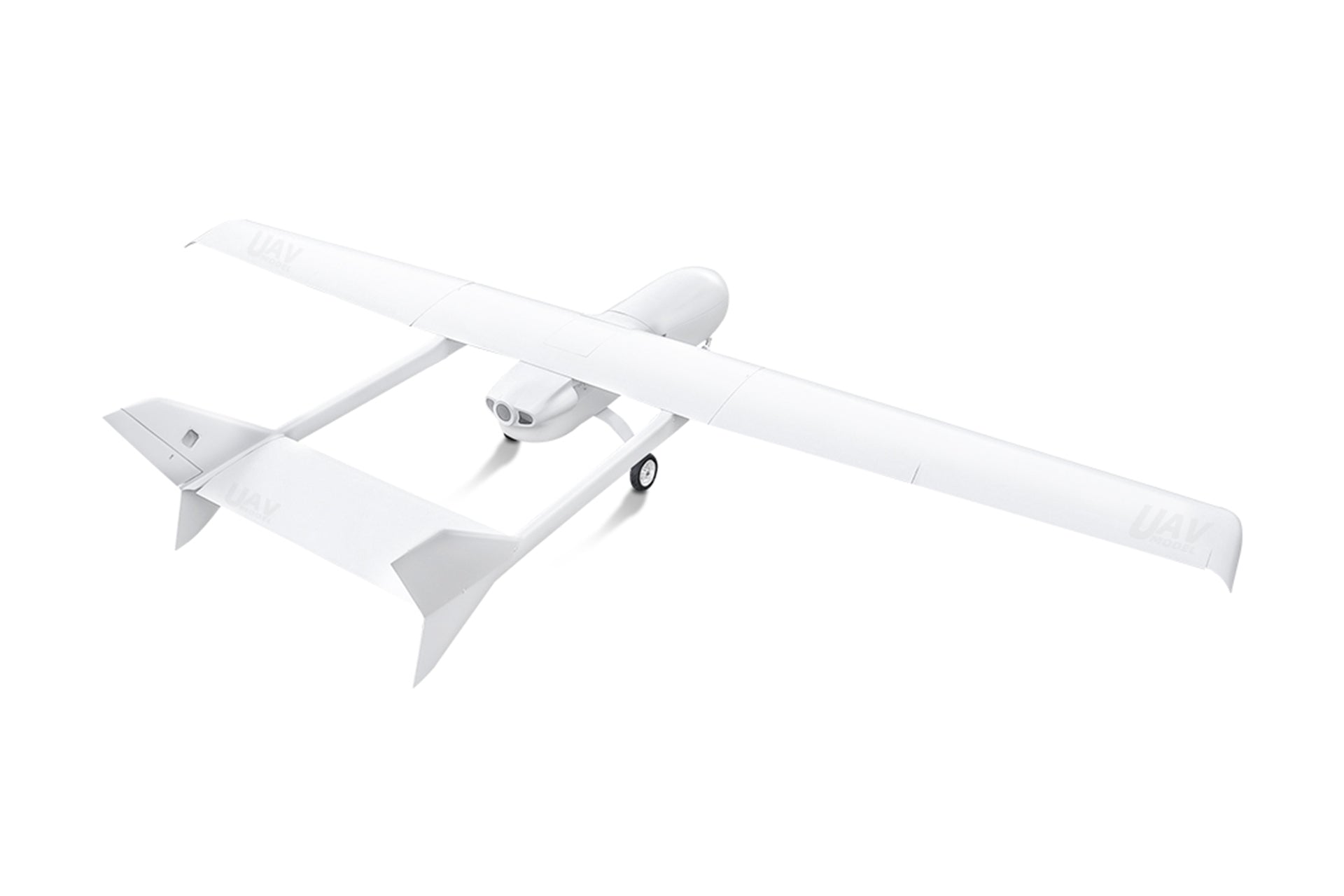

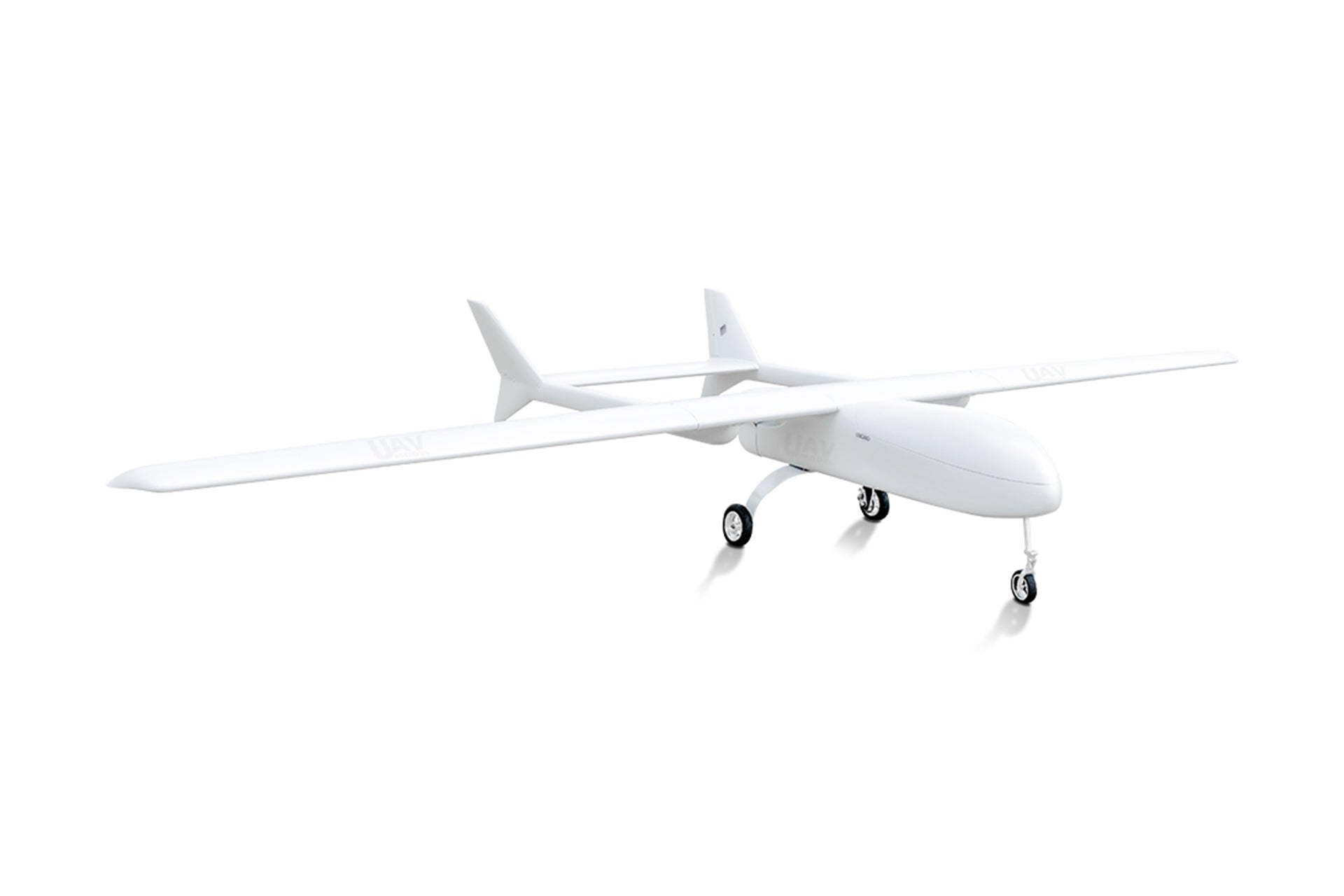

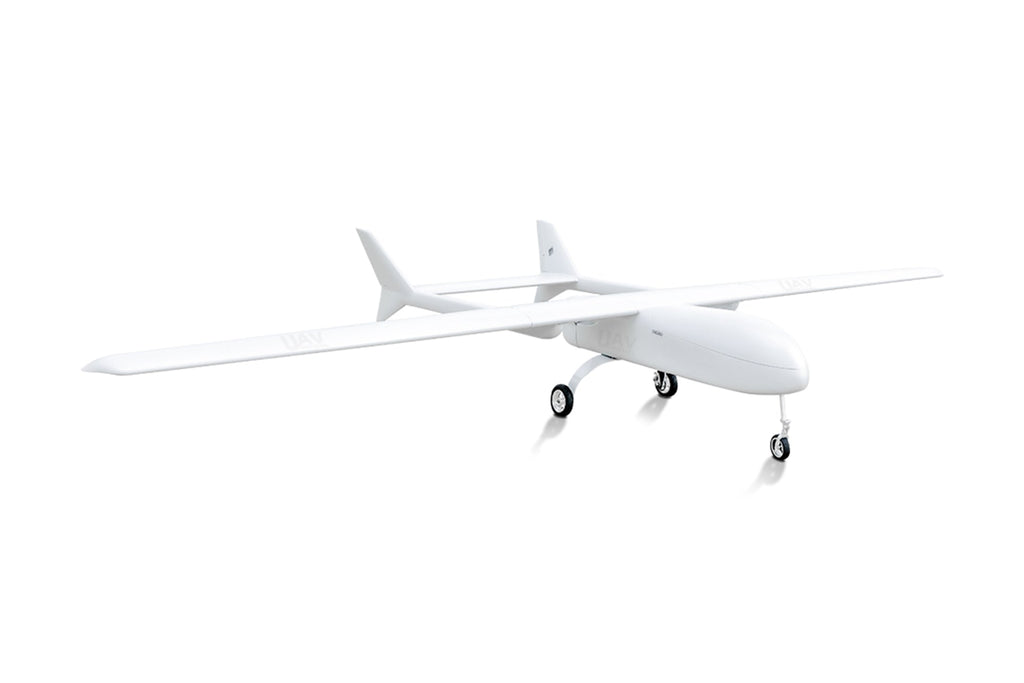

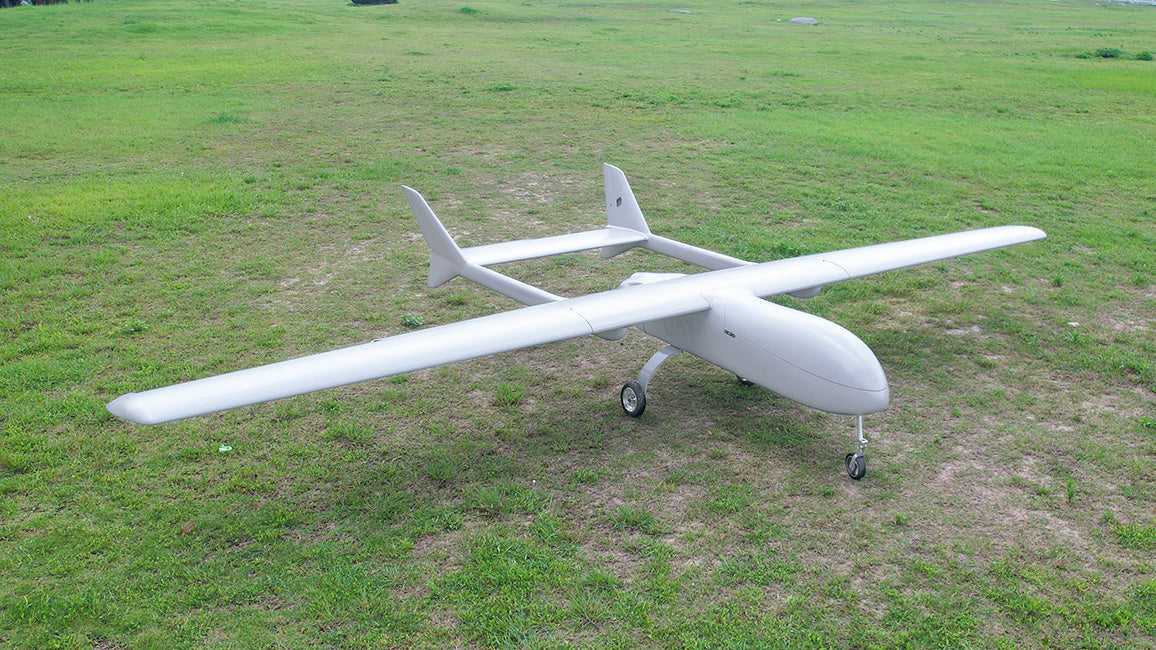

The Skyeye 5000mm Carbon Fiber Fixed Wing VTOL Drones UAV is expertly crafted with high-quality carbon fiber materials, providing a lightweight and durable solution for all of your drone needs. With advanced aerodynamics and flight control systems, this drone offers superior stability and maneuverability. Whether you're a professional photographer or an avid hobbyist, the Skyeye 5000mm is the perfect choice for capturing stunning aerial footage and accomplishing your drone goals with ease and precision.
We always hear to what our customers say, to achieve a longer flight time than the 4450, we release a new version of UAV platform with 5000mm wingspan,very large drone.

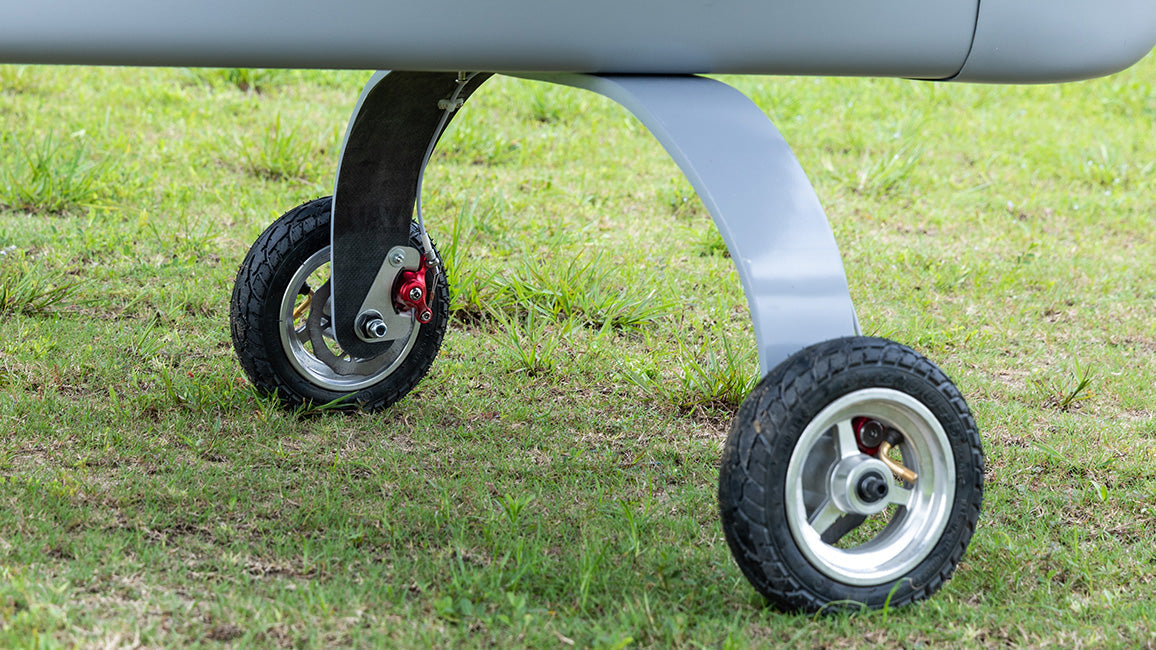

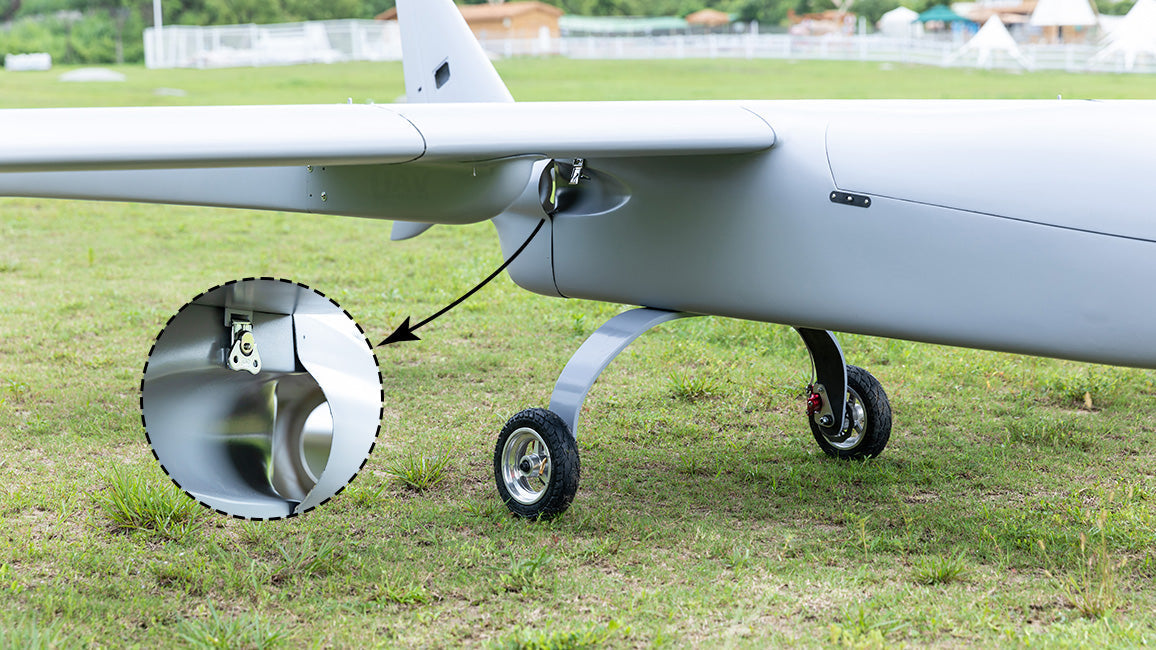

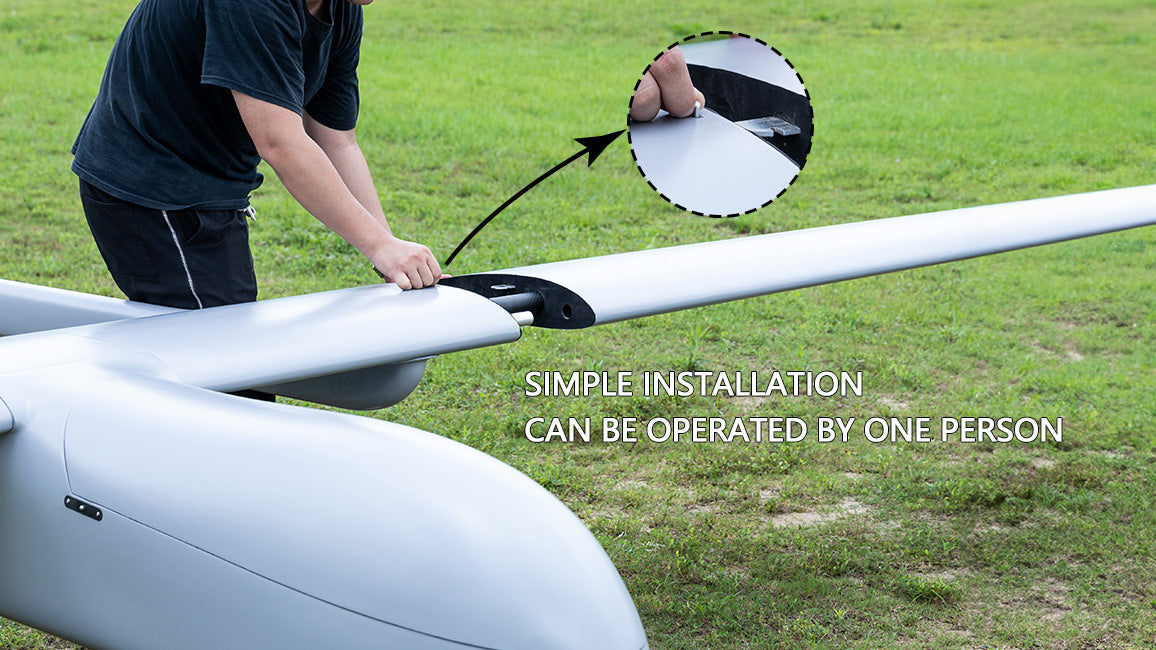

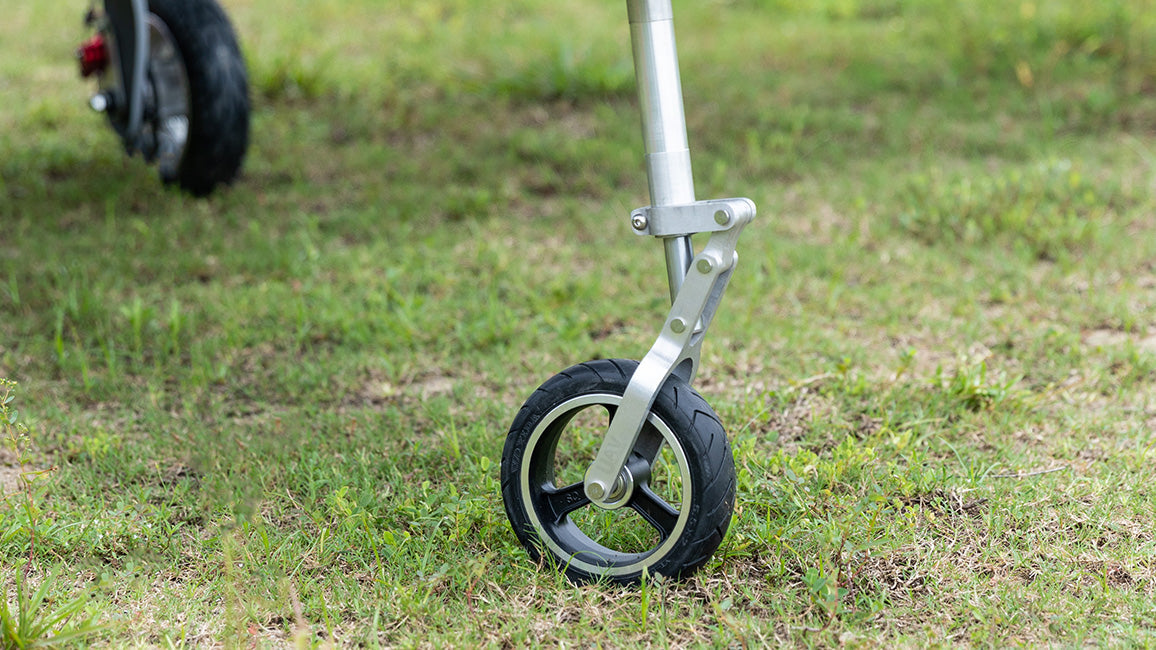

The same to latest version of 4450, the new upgraded disc brake system have been added onto the landing wheels,,fixed wing hybrid., so it is much safer while landing on the runway. We have strengthened the internal ribs and other structures for a longer lifespan. Each boom is now changed to two pieces for easier carry and international shipping.

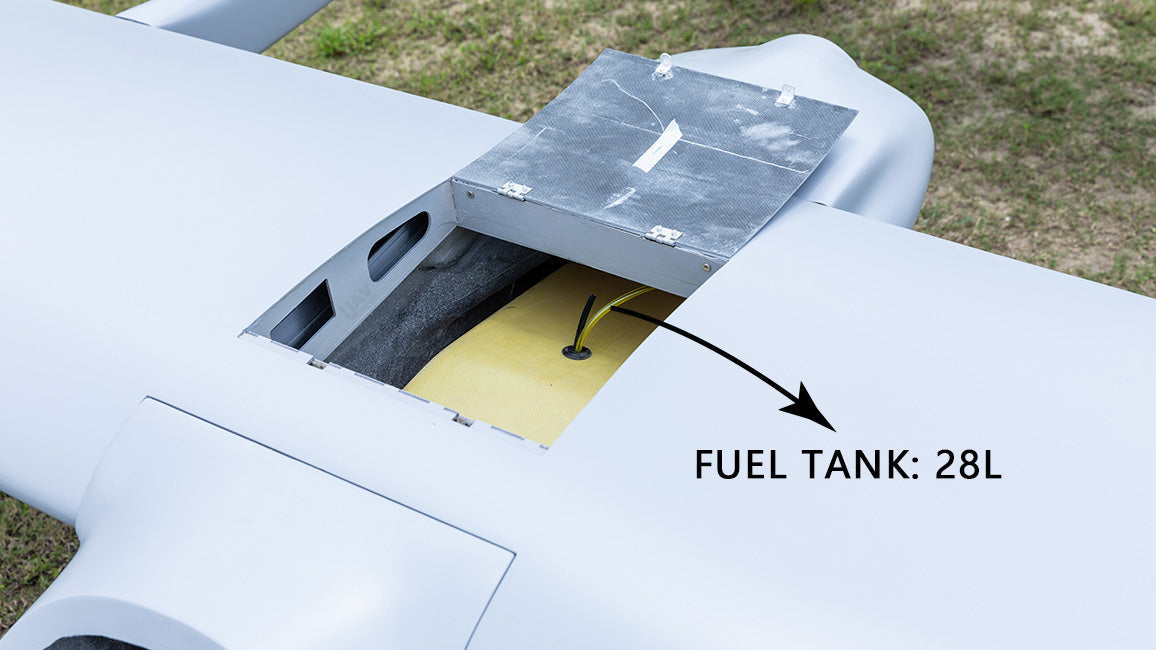

The 5000mm large scale drones comes with a Kevlar fuel tank. With full fuel of 27 liters, the estimated maximum flight time is over 7 hours. Its maximum take-off weight is up to 85kg and and the maximum payload is about 15 to 20kg.
| PARAMETER | wingspan | 5000mm |
| Length | 3500mm | |
| Maximum fuselage width | 375mm | |
| Wing area | 261.5 dm2 | |

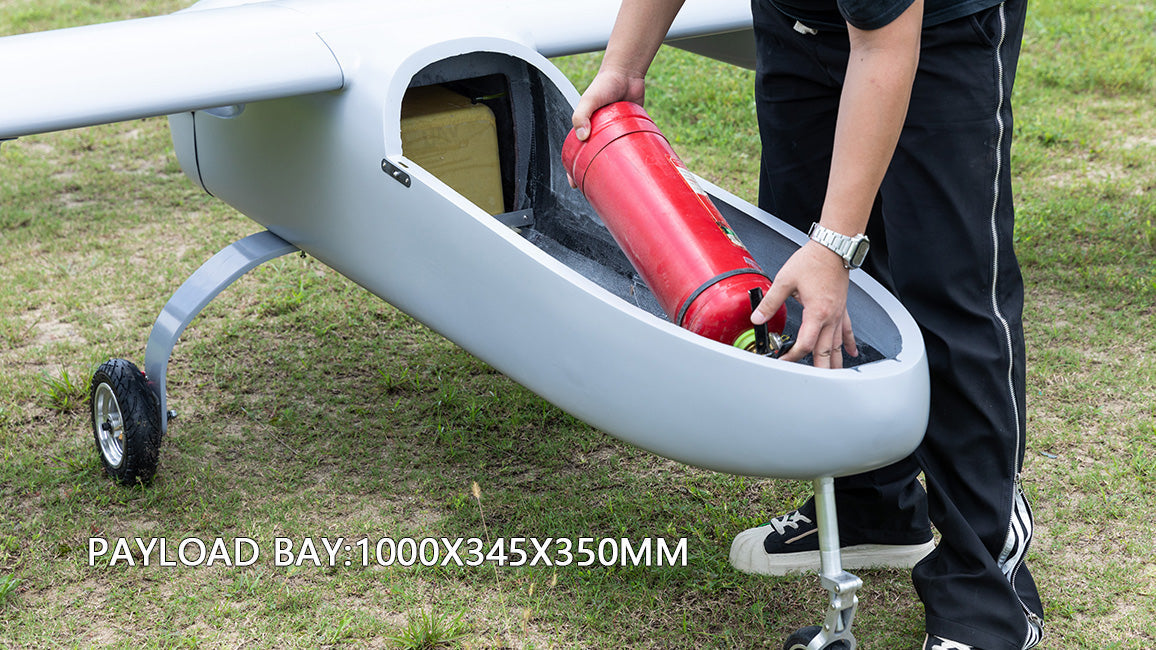

| Equipment bay dimensions | 920mmx340mmx350mm | |
| Tank volume | 30L | |
| Weight and Payload | Empty weight | 33.64kg |
| Maximum take-off weight | 85kg | |
| payload | 25kg | |
| Flight Characteristics | Top speed | 150km/hr |
| Cruising speed | 120km/hr | |
| Stall speed | 55km/hr | |
| Take-off distance | 60M | |
| Landing distance | 85M | |
| Maximum flight time | >7H | |
| Packaging Information | Wing section | 190*50*80cm |
| Fuselage section | 190*50*48cm |
| Skyeye 5000mm Carbon fiber fixed wing SS500 | |||
| Name | Specification | KIT | PNP |
| Flying platform | SS500 Outer wing | 2 | 2 |
| SS500 Center wing | 1 | 1 | |
| SS500 Main body | 1 | 1 | |
| SS500 undercarriage | 1 | 1 | |

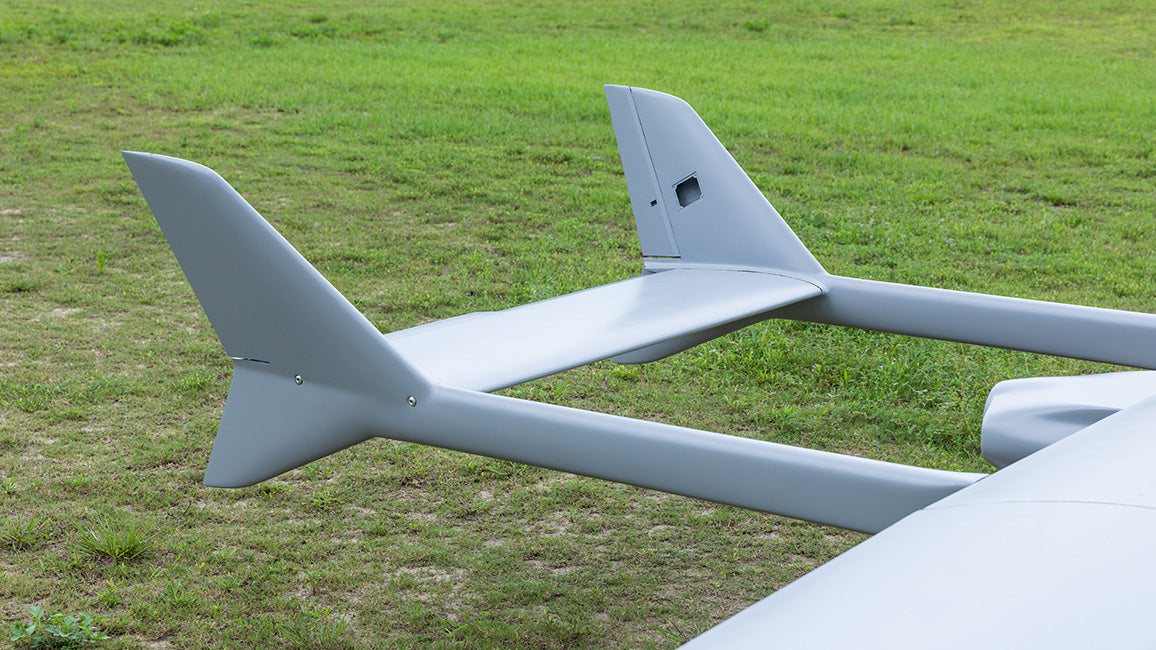

| SS500 Plain tail | 1 | 1 | |
| SS500 Stern stay | 2 | 2 | |
| SS500 Front stay | 2 | 2 | |

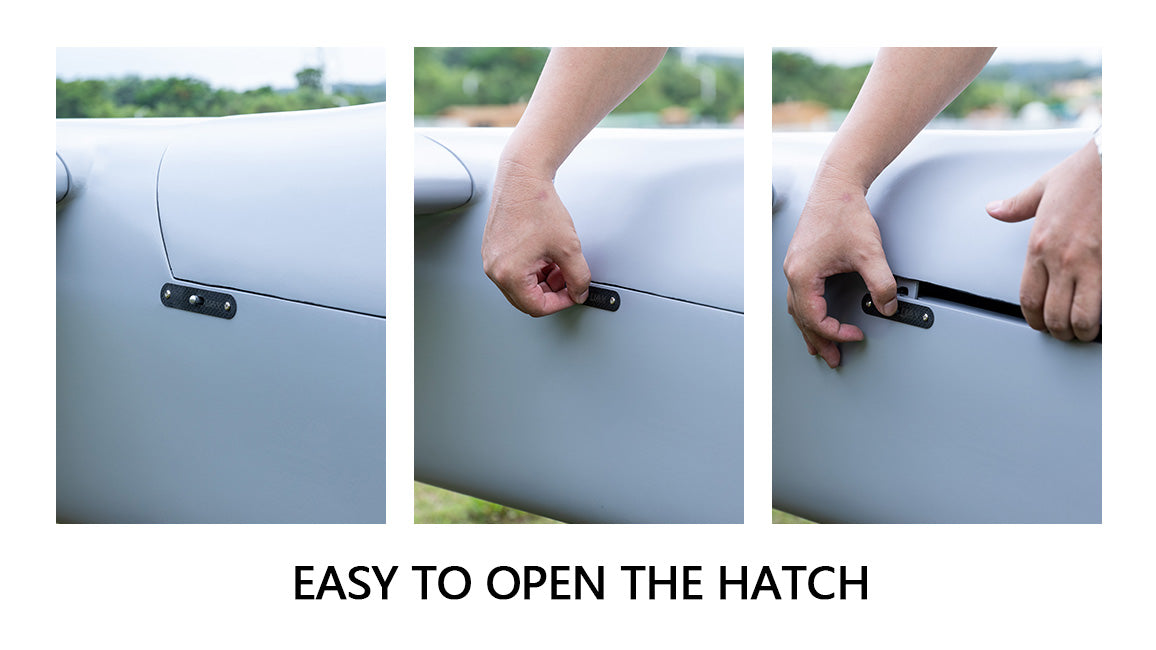

| SS500 hatchcover | 1 | 1 | |
| SS500 Fuel tank | 1 | 1 | |
| SS500 Engine hood | 1 | 1 | |
| Power system | DLE170 Engine | 1 | |
| Servo | 9 | ||
| 32*12 Propeller | 1 | ||
| Wire bale | 1 | ||
| Installation service | 1 | ||
Information Updated version:202501221207
If the product exceeds the maximum order weight of the system, the logistics cost can consult our customer service staff.
Note:
Production lead time: 7-15 working days (ask customer service about production schedule before ordering)
The shipping time is expected to be another 7~14 days
Prices and freight are for reference only, no stock, orders need to wait for production time.
